oxAuth JSON Properties
#Overview

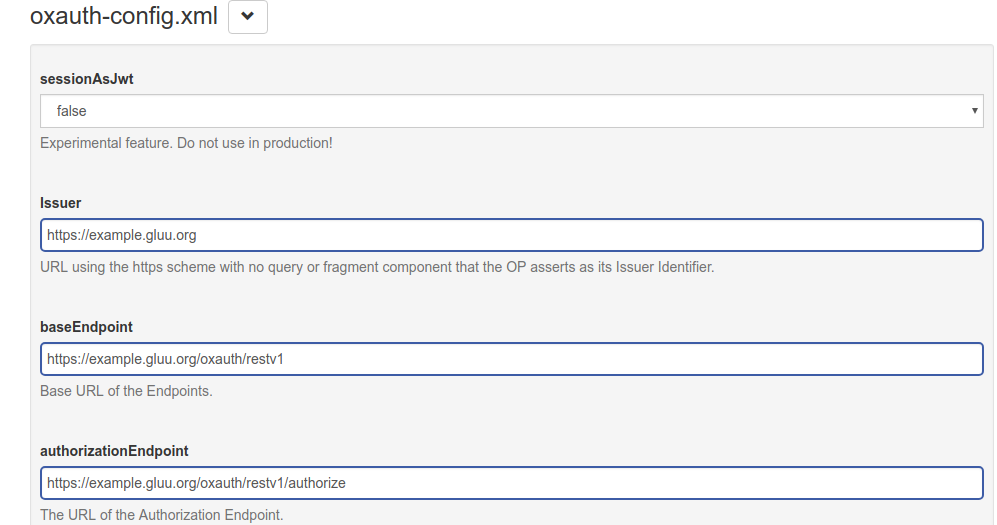

This page explains the JSON Configuration which can be accessed by navigating to Configuration > JSON Configuration > oxAuth Configuration.
#oxAuth.properties
The following tables include the name and description of each configurable oxAuth property:
#General Configuration
| Name | Description |
|---|---|
| sessionAsJwt | Experimental feature. This saves session data as a JWT |
| Issuer | URL using the https scheme that OP asserts as Issuer identifier |
| baseEndpoint | The base URL for endpoints |
| authorizationEndpoint | The authorization endpoint URL |
| tokenEndpoint | The token endpoint URL |
| tokenRevocationEndpoint | The URL for the access_token or refresh_token revocation endpoint |
| userInfoEndpoint | The User Info endpoint URL |
| clientInfoEndpoint | The Client Info endpoint URL |
| checkSessionIFrame | URL for an OP IFrame that supports cross-origin communications for session state information with the RP Client using the HTML5 postMessage API |
| endSessionEndpoint | URL at the OP to which an RP can perform a redirect to request that the end user be logged out at the OP |
| jwksUri | URL of the OP's JSON Web Key Set (JWK) document. This contains the signing key(s) the RP uses to validate signatures from the OP |
| registrationEndpoint | Registration endpoint URL |
| openIdDiscoveryEndpoint | Discovery endpoint URL |
| idGenerationEndpoint | ID Generation endpoint URL |
| introspectionEndpoint | Introspection endpoint URL |
| introspectionAccessTokenMustHaveUmaProtectionScope | If True, rejects introspection requests if access_token does not have the uma_protection scope in its authorization header |
| umaConfigurationEndpoint | UMA Configuration endpoint URL |
| sectorIdentifierEndpoint | Sector Identifier endpoint URL |
| oxElevenGenerateKeyEndpoint | oxEleven Generate Key endpoint URL |
| oxElevenSignEndpoint | oxEleven Sign endpoint URL |
| oxElevenVerifySignatureEndpoint | oxEleven Verify Signature endpoint URL |
| oxElevenDeleteKeyEndpoint | oxEleven Delete Key endpoint URL |
| oxElevenJwksEndpoint | oxEleven JWKS endpoint URL |
| openidSubAttribute | Specifies which LDAP attribute is used for the subject identifier claim |
| responseTypesSupported | This list details which OAuth 2.0 response_type values are supported by this OP. By default, every combination of code, token and id_token is supported. |
| grantTypesSupported | This list details which OAuth 2.0 grant types are supported by this OP |
| dynamicGrantTypeDefault | This list details which OAuth 2.0 grant types can be set up with the client registration API |
| subjectTypesSupported | This list details which Subject Identifier types that the OP supports. Valid types include pairwise and public. |
| defaultSubjectType | The default subject type used for dynamic client registration |
| userInfoSigningAlgValuesSupported | This JSON Array lists which JWS signing algorithms (alg values) [JWA] can be used by for the UserInfo endpoint to encode the claims in a JWT |
| userInfoEncryptionAlgValuesSupported | This JSON Array lists which JWS encryption algorithms (alg values) [JWA] can be used by for the UserInfo endpoint to encode the claims in a JWT |
| userInfoEncryptionEncValuesSupported | This JSON Array lists which JWS encryption algorithms (enc values) [JWA] can be used by for the UserInfo endpoint to encode the claims in a JWT |
| idTokenSigningAlgValuesSupported | A list of the JWS signing algorithms (alg values) supported by the OP for the ID Token to encode the Claims in a JWT |
| idTokenEncryptionAlgValuesSupported | A list of the JWE encryption algorithms (alg values) supported by the OP for the ID Token to encode the Claims in a JWT |
| idTokenEncryptionEncValuesSupported | A list of the JWE encryption algorithms (enc values) supported by the OP for the ID Token to encode the Claims in a JWT |
| requestObjectSigningAlgValuesSupported | A list of the JWS signing algorithms (alg values) supported by the OP for Request Objects |
| requestObjectEncryptionAlgValuesSupported | A list of the JWE encryption algorithms (alg values) supported by the OP for Request Objects |
| requestObjectEncryptionEncValuesSupported | A list of the JWE encryption algorithms (enc values) supported by the OP for Request Objects |
| tokenEndpointAuthMethodsSupported | A list of Client Authentication methods supported by this Token Endpoint |
| tokenEndpointAuthSigningAlgValuesSupported | A list of the JWS signing algorithms (alg values) supported by the Token Endpoint for the signature on the JWT used to authenticate the Client at the Token Endpoint for the private_key_jwt and client_secret_jwt authentication methods |
| dynamicRegistrationCustomAttributes | This list details the custom attributes for dynamic registration |
| displayValuesSupported | A list of the display parameter values that the OpenID Provider supports |
| claimTypesSupported | A list of the Claim Types that the OpenID Provider supports |
| serviceDocumentation | URL of a page containing human-readable information that developers might want or need to know when using the OpenID Provider |
| claimsLocalesSupported | This list details the languages and scripts supported for values in the claims being returned |
| idTokenTokenBindingCnfValuesSupported | Array containing a list of the JWT Confirmation Method member names supported by the OP for Token Binding of ID Tokens. The presence of this parameter indicates that the OpenID Provider supports Token Binding of ID Tokens. If omitted, the default is that the OpenID Provider does not support Token Binding of ID Tokens |
| uiLocalesSupported | This list details the languages and scripts supported for the user interface |
| persistIdTokenInLdap | Specifies whether to persist id_token into LDAP (otherwise saves into cache) |
| persistRefreshTokenInLdap | Specifies whether to persist refresh_token into LDAP (otherwise saves into cache) |
| claimsParameterSupported | Specifies whether the OP supports use of the claims parameter |
| requestParameterSupported | Boolean value specifying whether the OP supports use of the request parameter |
| requestUriParameterSupported | Boolean value specifying whether the OP supports use of the request_uri parameter |
| requireRequestUriRegistration | Boolean value specifying whether the OP requires any request_uri values used to be pre-registered using the request_uris registration parameter |
| opPolicyUri | URL that the OpenID Provider provides to the person registering the Client to read about the OP's requirements on how the Relying Party can use the data provided by the OP |
| opTosUri | URL that the OpenID Provider provides to the person registering the Client to read about OpenID Provider's terms of service |
| authorizationCodeLifetime | The lifetime of the Authorization Code |
| refreshTokenLifetime | The lifetime of the Refresh Token |
| idTokenLifetime | The lifetime of the ID Token |
| accessTokenLifetime | The lifetime of the short lived Access Token |
| umaRptLifetime | UMA RPT lifetime |
| umaTicketLifetime | UMA ticket lifetime |
| umaPctLifetime | UMA PCT lifetime |
| umaResourceLifetime | UMA Resource lifetime |
| umaAddScopesAutomatically | Add UMA scopes automatically if it is not registered yet |
| umaGrantAccessIfNoPolicies | Specify whether to grant access to resources if there is no any policies associated with scopes |
| umaRestrictResourceToAssociatedClient | Restrict access to resource by associated client |
| umaKeepClientDuringResourceSetRegistration | Save client information during resource registration |
| umaRptAsJwt | Issue RPT as JWT or as random string |
| cleanServiceInterval | Time interval for the Clean Service in seconds |
| cleanServiceBatchChunkSize | Clean service chunk size which is used during clean up. |
| cleanServiceBaseDns | Array of base DNs where clean service will look up for expired entities. |
| keyRegenerationEnabled | Boolean value specifying whether to regenerate keys |
| keyRegenerationInterval | The interval for key regeneration in hours |
| defaultSignatureAlgorithm | The default signature algorithm to sign ID Tokens |
| oxOpenIdConnectVersion | OpenID Connect Version |
| organizationInum | The Organization Inum |
| oxId | URL for the Inum generator Service |
| dynamicRegistrationEnabled | Boolean value specifying whether to enable Dynamic Registration |
| dynamicRegistrationExpirationTime | Expiration time in seconds for clients created with dynamic registration, 0 or -1 means never expire |
| dynamicRegistrationPersistClientAuthorizations | Boolean value specifying whether to persist client authorizations |
| trustedClientEnabled | Boolean value specifying whether a client is trusted and no authorization is required |
| dynamicRegistrationScopesParamEnabled | Boolean value specifying whether to enable scopes parameter in dynamic registration |
| dynamicRegistrationCustomObjectClass | LDAP custom object class for dynamic registration |
| personCustomObjectClassList | This list details LDAP custom object classes for dynamic person enrollment |
| authenticationFiltersEnabled | Boolean value specifying whether to enable user authentication filters |
| clientAuthenticationFiltersEnabled | Boolean value specifying whether to enable client authentication filters |
| clientRegDefaultToCodeFlowWithRefresh | Boolean value specifying whether to add Authorization Code Flow with Refresh grant during client registration. |
| authenticationFilters | This list details filters for user authentication |
| clientAuthenticationFilters | This list details filters for client authentication |
| sessionIdUnusedLifetime | The lifetime for unused session states |
| sessionIdUnauthenticatedUnusedLifetime | The lifetime for unused unauthenticated session states |
| sessionIdLifetime | The lifetime of session id in seconds. If 0 or -1 then expiration is not set. session_id cookie expires when browser session ends. |
| serverSessionIdLifetime | Dedicated property to control lifetime of the server side OP session object in seconds. Overrides sessionIdLifetime. By default value is 0, so object lifetime equals sessionIdLifetime (which sets both cookie and object expiration). It can be useful if goal is to keep different values for client cookie and server object. |
| sessionIdRequestParameterEnabled | Boolean value specifying whether to enable session_id HTTP request parameter |
| sessionIdPersistOnPromptNone | Boolean value specifying whether to persist session ID on prompt none |
| fapiCompatibility | Boolean value specifying whether to turn on FAPI compatibility mode. If true AS behaves in more strict mode. |
| consentGatheringScriptBackwardCompatibility | Boolean value specifying whether to turn on Consent Gathering Script backward compatibility mode. If true AS will pick up script with higher level globally. If false (default) AS will pick up script based on client configuration. |
| introspectionScriptBackwardCompatibility | Boolean value specifying whether switch off client's introspection scripts (true value) and run all scripts that exists on server. Default value is false. |
| clientAuthorizationBackwardCompatibility | Boolean value specifying whether switch to old way of fetching client authorizations (querying by userInum=<v>&clientId=<c> filter instead of getting by key v_c introduced in 4.2.1 which impacts performance). |
| rejectJwtWithNoneAlg | Boolean value specifying whether reject JWT requested or validated with algorithm None. Default value is true. |
| spontaneousScopeLifetime | The lifetime of spontaneous scope in seconds. |
| configurationUpdateInterval | The interval for configuration update in seconds |
| cssLocation | The location for CSS files |
| jsLocation | The location for JavaScript files |
| imgLocation | The location for image files |
| metricReporterInterval | The interval for metric reporter in seconds |
| metricReporterKeepDataDays | The days to keep metric reported data |
| metricReporterEnabled | Boolean value specifying whether to enable Metric Reporter |
| pairwiseIdType | the pairwise ID type |
| pairwiseCalculationKey | Key to calculate algorithmic pairwise IDs |
| pairwiseCalculationSalt | Salt to calculate algorithmic pairwise IDs |
| shareSubjectIdBetweenClientWithSameSectorId | When true, clients with the same Sector ID also share the same Subject ID. |
| webKeysStorage | Web Key Storage Type |
| dnName | DN of certificate issuer |
| keyStoreFile | The Key Store File (JKS) |
| keyStoreSecret | The Key Store password |
| keySelectionStrategy | Key Selection Strategy : OLDER (default), NEWER, FIRST |
| endSessionWithAccessToken | Choose whether to accept access tokens to call end_session endpoint |
| сookieDomain | Sets cookie domain for all cookies created by OP |
| clientWhiteList | This list specifies which client redirection URIs are white-listed |
| clientBlackList | This list specified which client redirection URIs are black-listed |
| legacyIdTokenClaims | Choose whether to include claims in ID tokens |
| customHeadersWithAuthorizationResponse | Choose whether to enable the custom response header parameter to return custom headers with the authorization response |
| frontChannelLogoutSessionSupported | Choose whether to support front channel session logout |
| useCacheForAllImplicitFlowObjects | Choose whether to persist all objects into the cache during implicit flow |
| invalidateSessionCookiesAfterAuthorizationFlow | Boolean value to specify whether to invalidate session_id and consent_session_id cookies right after successful or unsuccessful authorization |
| updateUserLastLogonTime | Choose if application should update oxLastLogonTime attribute upon user authentication |
| updateClientAccessTime | Choose if application should update oxLastAccessTime/oxLastLogonTime attributes upon client authentication |
| enableClientGrantTypeUpdate | Choose if client can update Grant Type values |
| loggingLevel | Specify the logging level for oxAuth loggers |
| corsConfigurationFilters | This list specifies the CORS configuration filters |
| logClientIdOnClientAuthentication | Choose if application should log the Client ID on client authentication |
| logClientNameOnClientAuthentication | Choose if application should log the Client Name on client authentication |
| authorizationRequestCustomAllowedParameters | This list details the allowed custom parameters for authorization requests |
| legacyDynamicRegistrationScopeParam | Choose whether to allow legacy dynamic registration JSON array parameters |
| openidScopeBackwardCompatability | Set to false to only allow token endpoint request for openid scope with grant type equals to authorization_code, restrict access to userinfo to scope openid and only return id_token if scope contains openid |
| skipAuthorizationForOpenIdScopeAndPairwiseId | Choose whether to skip authorization if a client has an OpenId scope and a pairwise ID |
| allowPostLogoutRedirectWithoutValidation | Allows post-logout redirect without validation for the End Session endpoint (still AS validates it against clientWhiteList url pattern property) |
| httpLoggingEnabled | Enable/disable request/response logging filter |
| httpLoggingExcludePaths | This list details the base URIs for which the request/response logging filter will not record activity |
| externalLoggerConfiguration | The path to the external log4j2 logging configuration |
| disableU2fEndpoint | Choose whether to disable U2F endpoints |
| disableJdkLogger | Choose whether to disable JDK loggers |
| errorHandlingMethod | A list of possible error handling methods |
| useLocalCache | Cache in local memory cache attributes, scopes, clients and organization entry with expiration 60 seconds |
| jwksAlgorithmsSupported | A list of algorithms that will be used in JWKS endpoint. |
| returnClientSecretOnRead | Boolean value specifying whether a client_secret is returned on client GET or PUT. Set to true by default which means to return secret. |
| changeSessionIdOnAuthentication | Boolean value specifying whether change session_id on authentication. Default value is true. |
| forceOfflineAccessScopeToEnableRefreshToken | Boolean value specifying whether force offline_access scope to enable refresh_token grant type. Default value is true. |
| errorReasonEnabled | Boolean value specifying whether to return detailed reason of the error from AS. Default value is false. |
| removeRefreshTokensForClientOnLogout | Boolean value specifying whether to remove Refresh Tokens on logout. Default value is false. |
#Brute Force Protection
The Gluu Server comes with a feature to help protect against brute force attacks by periodically delaying login requests that occur too frequently in too short a period of time. The following parameters are listed under the authenticationProtectionConfiguration header:
| Name | Description |
|---|---|
| attemptExpiration | How long, in minutes, to store a login attempt. |
| maximumAllowedAttemptsWithoutDelay | How many attempts the application allows before delaying |
| delayTime | How long, in seconds, to delay a login attempt that exceeds the maximum allowed |
| bruteForceProtectionEnabled | Choose whether to enable this feature |
All parameters except bruteForceProtectionEnabled require a server restart for changes to take effect.
For example, the following parameters:
attemptExpiration: 15
maximumAllowedAttemptsWithoutDelay: 4
delayTime: 2
bruteForceProtectionEnabled: true... will insert a 2 second delay after every fourth login attempt within 15 minutes of each other.
#fido2Configuration
| Name | Description |
|---|---|
| authenticatorCertsFolder | Location of authenticator certificate folder |
| mdsAccessToken | MDS Access Token |
| mdsCertsFolder | Location of MDS TOC root certificate folder |
| mdsTocsFolder | Location of MDS TOC files folder |
| userAutoEnrollment | Select whether to enroll users on enrollment/authentication requests |
| unfinishedRequestExpiration | Expiration time in seconds for pending enrollment/authentication requests |
| authenticationHistoryExpiration | Expiration time in seconds for approved authentication requests |
| serverMetadataFolder | Location of authenticator metadata in JSON format, such as virtual devices |
| disableFido2 | Enable/disable Fido2 endpoints |
