Certificate Management

Gluu Community Edition

#Certificates in Chroot

Gluu Server components have cryptographic keys and X.509 certificates that are stored inside thechroot. Details for certificates associated with each component are provided below. The following certificates are available in the /etc/certs folder.

IDP	Shibboleth	APACHE	OPENDJ
idp-encryption.crt	shibIDP.crt	httpd.crt	opendj.crt
idp-encryption.csr	shibIDP.csr	https.csr	opendj.pksc12
idp-encryption.key	shibIDP.jks	httpd.key
idp-encryption.key.orig	shibIDP.key	httpd.key.orig
idp-signing.crt	shibIDP.key.orig
idp-signing.csr	shibIDP.pkcs12
idp-signing.key
idp-signing.key.orig

The certificates for Passport authentication are passport-rp.jks, passport-rp.pem, passport-rs.jks.

The SCIM certificate is named scim-rs.jks and the OTP certificate is named otp_configuration.json.

#Custom Script JSON Files

Additionally the following json files are available which are used in different custom scripts for multi-factor authentication.

cert_creds.json
duo_creds.json
gplus_client_secrets.json
otp_configuration.json
oxauth-keys.json
super_gluu_creds.json
vericloud_gluu_creds.json

#Generating Cryptographic Keys

The Gluu Server is compatible with the Java KeyGenerator to create new cryptographic keys if needed.

To get KeyGenerator, run the following command inside the chroot:

wget https://ox.gluu.org/maven/org.gluu/oxauth-client/4.2/oxauth-client-4.2-jar-with-dependencies.jar -O oxauth-client.jar

Then, run KeyGenerator with the following command:

java -jar oxauth-client.jar <arguments>

The Gluu implementation of KeyGenerator accepts the following arguments:

Argument	Description
-at `<arg>`	oxEleven Access Token
-dnname `<arg>`	DN of certificate issuer
-enc_keys `<arg>`	Encryption keys to generate (For example: RSA_OAEP, RSA1_5)
-expiration `<arg>`	Expiration in days
-expiration_hours `<arg>`	Expiration in hours
-h	Show help
-keypasswd `<arg>`	Key Store password
-keystore `<arg>`	Key Store file (such as /etc/certs/api-rs.jks)
-ox11 `<arg>`	oxEleven Generate Key Endpoint.
-sig_keys `<arg>`	Signature keys to generate. (For example: RS256 RS384 RS512 ES256 ES384 ES512 PS256 PS384 PS512)

#Certificates in oxTrust

Certificates commonly used for SSO typically have a short expiration date, and can now be easily viewed and downloaded in oxTrust. Navigate to Configuration > Certificates to access these certificates.

The following are available:

OpenDJ SSL
httpd SSL
IDP Signing
IDP Encryption

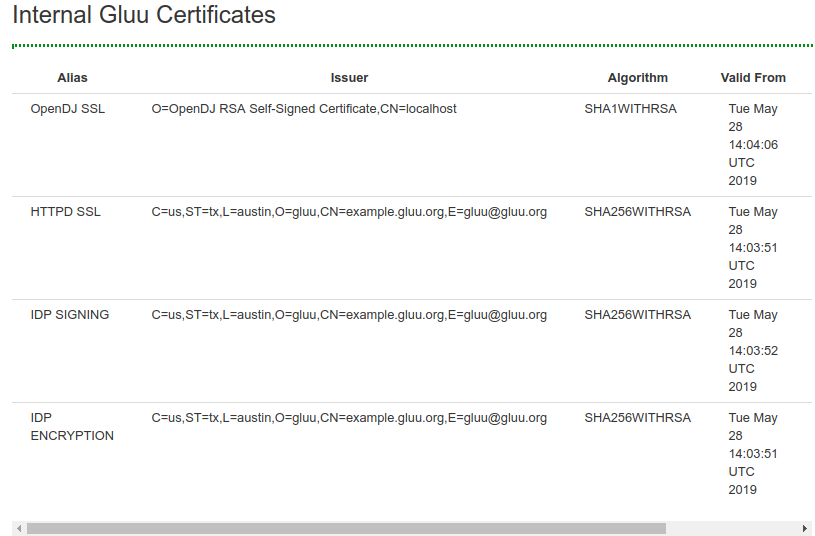

Example Certs in oxTrust

#Updating Apache Certificate

The certificates must be manually updated from the /etc/certs/ folder.

There are many tools that can be used to update and renew certificates. By default Gluu uses OpenSSL. If you have questions about using other tools, like Let'sEncrypt, check the Gluu support portal for existing threads. If there is no existing information, sign up and open a ticket.

Please follow these steps shown below to update the Apache SSL cert:

Save the latest SSL httpd key and certificate in the /etc/certs folder
Rename them to httpd.key and httpd.crt respectively
Import 'httpd.der' into the Java Keystore / Convertion to DER, command:
openssl x509 -outform der -in httpd.crt -out httpd.der
- Delete the existing certificate to avoid ambiguity due to presence of 2 different certificates for the same entity after importing the new one: /opt/amazon-corretto-x.x.x.x-linux-x64/bin/keytool -delete -alias <hostname_of_your_Gluu_Server>_httpd -keystore /opt/amazon-corretto-x.x.x.x/lib/security/cacerts -storepass changeit
- Import certificate into the Java Keystore(cacerts): /opt/amazon-corretto-x.x.x.x/bin/keytool -importcert -file httpd.der -keystore /opt/amazon-corretto-x.x.x.x/lib/security/cacerts -alias <hostname_of_your_Gluu_Server>_httpd -storepass changeit
Restart opendj, apache2/httpd, oxauth and identity services.

#Install Intermediate Certificates

Please follow the steps below to install intermediate certificates:

Log in to the Gluu Server container.
Keep your intermediate certificate in the file /etc/certs/.
Modify /etc/httpd/conf.d/https_gluu.conf, and add SSLCertificateChainFile /etc/certs/name_of_your_interm_root_cert.crt.
Restart the httpd service.

Gluu Cloud Native Edition

#Rotating Certificates and Keys in Kubernetes setup

web (ingress)

Associated certificates and keys
/etc/certs/gluu_https.crt
/etc/certs/gluu_https.key

Rotate

Create a file named web-key-rotation.yaml with the following contents :

# License terms and conditions for Gluu Cloud Native Edition:
# https://www.apache.org/licenses/LICENSE-2.0
apiVersion: batch/v1
kind: Job
metadata:
  name: web-key-rotation
spec:
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "false"
    spec:
      restartPolicy: Never
      imagePullSecrets:
      - name: regcred
      containers:
        - name: web-key-rotation
          image: gluufederation/certmanager:4.5.2-1
          envFrom:
          - configMapRef:
              name: gluu-config-cm # This may be differnet in Helm
          args: ["patch", "web", "--opts", "valid-to:365"]

Apply job

    kubectl apply -f web-key-rotation.yaml -n <gluu-namespace>

Load from existing source

Create a secret with gluu_https.crt and gluu_https.key. Note that this may already exist in your deployment.

    kubectl create secret generic web-cert-key --from-file=gluu_https.crt --from-file=gluu_https.key -n <gluu-namespace>`

Create a file named load-web-key-rotation.yaml with the following contents :

# License terms and conditions for Gluu Cloud Native Edition:
# https://www.apache.org/licenses/LICENSE-2.0
apiVersion: batch/v1
kind: Job
metadata:
  name: load-web-key-rotation
spec:
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "false"
    spec:
      restartPolicy: Never
      imagePullSecrets:
      - name: regcred
      volumes:
      - name: web-cert
        secret:
          secretName: web-cert-key
          items:
            - key: gluu_https.crt
              path: gluu_https.crt
      - name: web-key
        secret:
          secretName: web-cert-key
          items:
            - key: gluu_https.key
              path: gluu_https.key
      containers:
        - name: load-web-key-rotation
          image: gluufederation/certmanager:4.5.2-1
          envFrom:
          - configMapRef:
              name: gluu-config-cm  #This may be differnet in Helm
          volumeMounts:
            - name: web-cert
              mountPath: /etc/certs/gluu_https.crt
              subPath: gluu_https.crt
            - name: web-key
              mountPath: /etc/certs/gluu_https.key
              subPath: gluu_https.key
          args: ["patch", "web", "--opts", "source:from-files"]

Apply job

    kubectl apply -f load-web-key-rotation.yaml -n <gluu-namespace>

oxAuth

Associated certificates and keys
/etc/certs/oxauth-keys.json
/etc/certs/oxauth-keys.jks

Create a file named oxauth-key-rotation.yaml with the following contents :

# License terms and conditions for Gluu Cloud Native Edition:
# https://www.apache.org/licenses/LICENSE-2.0
kind: CronJob
apiVersion: batch/v1
metadata:
  name: oxauth-key-rotation
spec:
  schedule: "0 */48 * * *"
  concurrencyPolicy: Forbid
  jobTemplate:
    spec:
      template:
        metadata:
          annotations:
            sidecar.istio.io/inject: "false"
        spec:
          containers:
            - name: oxauth-key-rotation
              image: gluufederation/certmanager:4.5.2-1
              env:
                - name: GLUU_CONTAINER_MAIN_NAME
                  value: "oxauth" # Place oxauth container name
              resources:
                requests:
                  memory: "300Mi"
                  cpu: "300m"
                limits:
                  memory: "300Mi"
                  cpu: "300m"
              envFrom:
                - configMapRef:
                    name: gluu-config-cm
              args: ["patch", "oxauth", "--opts", "interval:48", "--opts", "key-strategy:OLDER", "--opts", "privkey-push-delay:300", "--opts", "privkey-push-strategy:NEWER"]
              #volumeMounts:
              # If using Couchbase
              #- mountPath: /etc/gluu/conf/couchbase_password
              #  name: cb-pass
              #  subPath: couchbase_password
              #- mountPath: /etc/certs/couchbase.crt
              #  name: cb-crt
              #  subPath: couchbase.crt
              # If using SQL
              #- name: sql-pass
              #  mountPath: "/etc/jans/conf/sql_password"
              #  subPath: sql_password
          restartPolicy: Never
          imagePullSecrets:
          - name: regcred
          #volumes:
          # If using Couchbase
          #- name: cb-pass
          #  secret:
          #    secretName: cb-pass
          #- name: cb-crt
          #  secret:
          #    secretName: cb-crt
          # If using SQL
          #- name: sql-pass
          #  secret:
          #    secretName: {{ .Release.Name }}-sql-pass

Apply CronJob

    kubectl apply -f oxauth-key-rotation.yaml -n <gluu-namespace>

oxShibboleth

Associated certificates and keys
/etc/certs/shibIDP.crt
/etc/certs/shibIDP.key
/etc/certs/shibIDP.jks
/etc/certs/sealer.jks
/etc/certs/sealer.kver
/etc/certs/idp-signing.crt
/etc/certs/idp-signing.key
//etc/certs/idp-encryption.crt
/etc/certs/idp-encryption.key

Create a file named oxshibboleth-key-rotation.yaml with the following contents :

# License terms and conditions for Gluu Cloud Native Edition:
# https://www.apache.org/licenses/LICENSE-2.0
apiVersion: batch/v1
kind: Job
metadata:
  name: oxshibboleth-key-rotation
spec:
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "false"
    spec:
      restartPolicy: Never
      imagePullSecrets:
          - name: regcred
      containers:
        - name: oxshibboleth-key-rotation
          image: gluufederation/certmanager:4.5.2-1
          envFrom:
          - configMapRef:
              name: gluu-config-cm
          args: ["patch", "oxshibboleth"]

Apply job

    kubectl apply -f oxshibboleth-key-rotation.yaml -n <gluu-namespace>

ldap

Associated certificates and keys
/etc/certs/opendj.crt
/etc/certs/opendj.key
/etc/certs/opendj.pem
/etc/certs/opendj.pkcs12

Create a file named ldap-key-rotation.yaml with the following contents :

# License terms and conditions for Gluu Cloud Native Edition:
# https://www.apache.org/licenses/LICENSE-2.0
apiVersion: batch/v1
kind: Job
metadata:
  name: ldap-key-rotation
spec:
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "false"
    spec:
      restartPolicy: Never
      imagePullSecrets:
          - name: regcred
      containers:
        - name: ldap-key-rotation
          image: gluufederation/certmanager:4.5.2-1
          envFrom:
          - configMapRef:
              name: gluu-config-cm
          args: ["patch", "ldap", "--opts", "subj-alt-name:opendj", "--opts", "valid-to:365"]

Apply job

    kubectl apply -f ldap-key-rotation.yaml -n <gluu-namespace>

Restart pods.

passport

Associated certificates and keys
/etc/certs/passport-rs.jks
/etc/certs/passport-rs-keys.json
/etc/certs/passport-rp.jks
/etc/certs/passport-rp-keys.json
/etc/certs/passport-rp.pem
/etc/certs/passport-sp.key
/etc/certs/passport-sp.crt

Create a file named passport-key-rotation.yaml with the following contents :

# License terms and conditions for Gluu Cloud Native Edition:
# https://www.apache.org/licenses/LICENSE-2.0
apiVersion: batch/v1
kind: Job
metadata:
  name: passport-key-rotation
spec:
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "false"
    spec:
      restartPolicy: Never
      imagePullSecrets:
          - name: regcred
      containers:
        - name: passport-key-rotation
          image: gluufederation/certmanager:4.5.2-1
          envFrom:
          - configMapRef:
              name: gluu-config-cm
          args: ["patch", "passport", "--opts", "valid-to:365"]

Apply job

    kubectl apply -f passport-key-rotation.yaml -n <gluu-namespace>

scim

Associated certificates and keys
/etc/certs/scim-rs.jks
/etc/certs/scim-rs-keys.json
/etc/certs/scim-rp.jks
/etc/certs/scim-rp-keys.json

Create a file named scim-key-rotation.yaml with the following contents :

# License terms and conditions for Gluu Cloud Native Edition:
# https://www.apache.org/licenses/LICENSE-2.0
apiVersion: batch/v1
kind: Job
metadata:
  name: scim-key-rotation
spec:
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "false"
    spec:
      restartPolicy: Never
      imagePullSecrets:
          - name: regcred
      containers:
        - name: scim-key-rotation
          image: gluufederation/certmanager:4.5.2-1
          envFrom:
          - configMapRef:
              name: gluu-config-cm
          args: ["patch", "scim", "--opts", "valid-to:365"]

Apply job

    kubectl apply -f scim-key-rotation.yaml -n <gluu-namespace>
