One-Time Password (OTP) Authentication#

Overview#

This document explains how to use the Gluu Server's included OTP interception script to implement a two-step, two-factor authentication (2FA) process with username / password as the first step, and any OTP app as the second step.

The OTP interception script uses the two-factor event/counter-based HOTP algorithm RFC4226 and the time-based TOTP algorithm RFC6238.

Note

To support SMS OTP, follow the SMS OTP documentation.

Prerequisites#

Properties#

The OTP authentication script has the following properties:

Property Description Example
issuer Issuer of the OTP service Gluu Inc
label The name of the application Gluu OTP
otp_conf_file Location of the OTP configuration file /etc/certs/otp_configuration.json
otp_type Type of OTP in use totp
qr_options Size of the QR code that is used for device enrollment { size: 400, mSize: 0.05 }
registration_uri Registration endpoint of the IDP https://idp.example.com/identity/register

Enable OTP#

Follow the steps below to enable Super Gluu authentication:

  1. In oxTrust, navigate to Configuration > Manage Custom Scripts
  2. Click on the Person Authentication tab
  3. Find the OTP script
  4. Enable the script by checking the box
  5. Scroll to the bottom of the page and click Update

Now OTP is an available authentication mechanism for your Gluu Server. This means that, using OpenID Connect acr_values, applications can now request OTP authentication for users.

Make OTP the Default#

If OTP should be the default authentication mechanism, follow these instructions:

  1. Navigate to Configuration > Manage Authentication

  2. Select the Default Authentication Method tab

  3. In the Default Authentication Method window you will see two options: Default acr and oxTrust acr

  4. oxTrust acr sets the authentication mechanism for accessing the oxTrust dashboard GUI (only managers should have acccess to oxTrust)

  5. Default acr sets the default authentication mechanism for accessing all applications that leverage your Gluu Server for authentication (unless otherwise specified)

If OTP should be the default authentication mechanism for all access, change both fields to OTP.

OTP Login Pages#

The Gluu Server includes two default login pages for OTP:

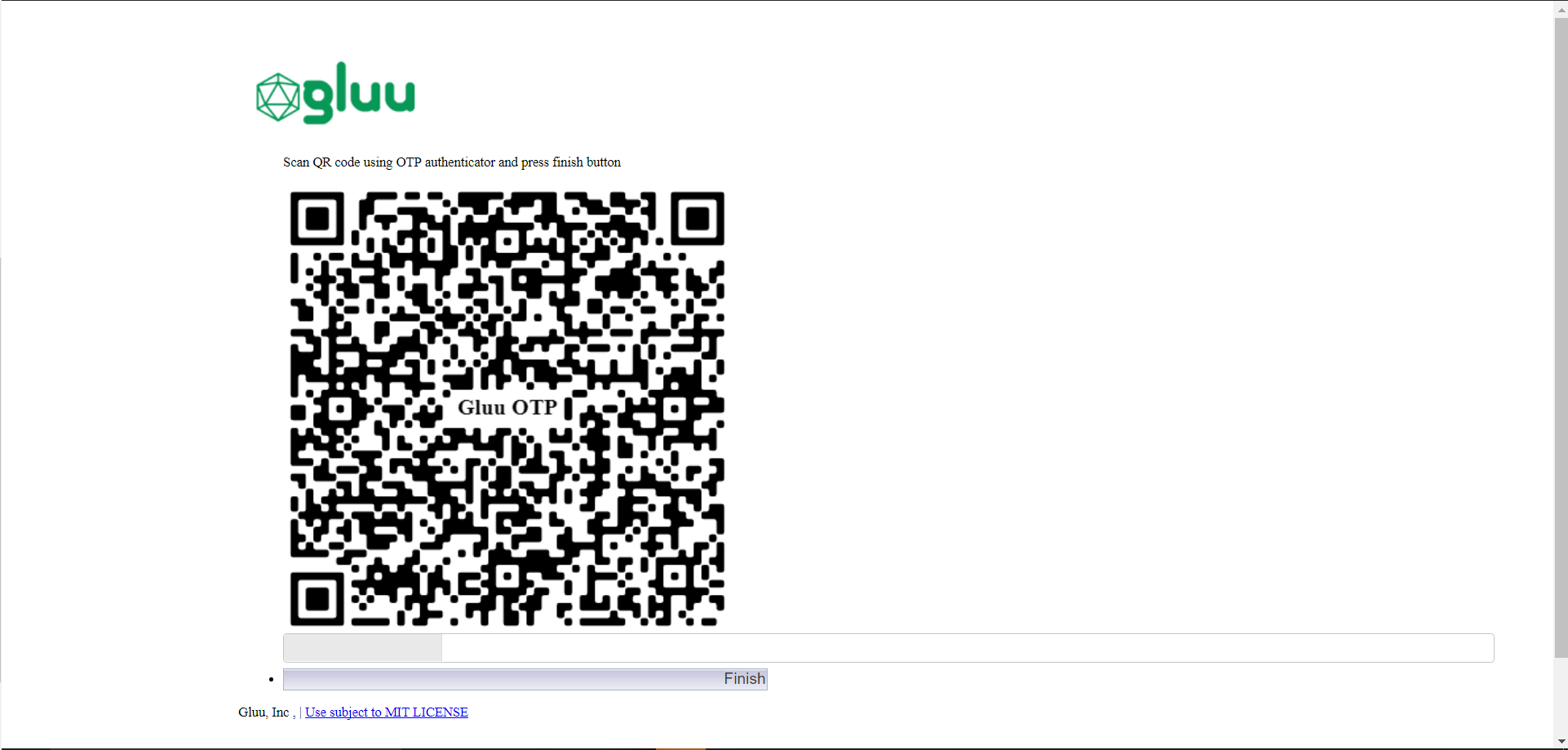

  1. An enrollment page that is displayed the first time a user is prompted for OTP authentication;
    otp-enrollment

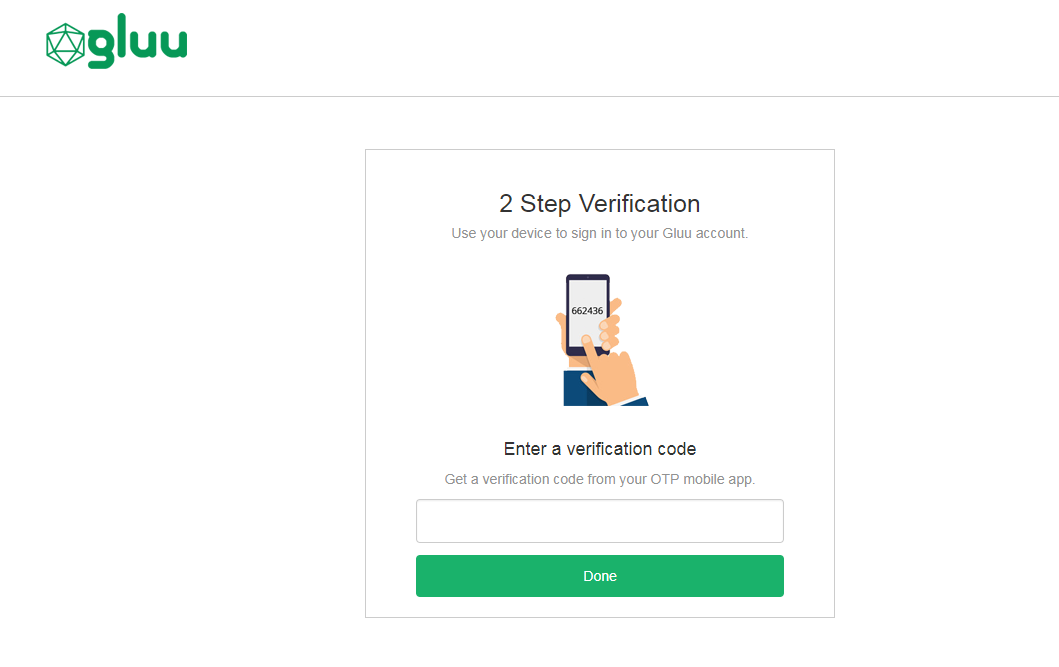

  2. A login page that is displayed for all subsequent OTP authentications.
    otp

Using OTP Apps#

Device Enrollment#

OTP device enrollment happens during the first authentication attempt. The initial enrollment page displays a QR code that needs to be scanned with the OTP app.

Subsequent Logins#

All subsequent authentications will require the user to retreive and enter an OTP from the application.

Credential Management#

A user's OTP device(s) can be removed by a Gluu administrator either via the oxTrust UI in Users > Manage People, or in LDAP under the user entry. In LDAP, navigate to appliances and search for an attribute oxExternalUid. Remove the values of this attribute. Upon the next OTP login attempt, the user will be prompted to enroll a new device.
