OX LDAP Properties#

Overview#

Ox-LDAP.properties file contains information required for the Gluu CE Server to connect with LDAP for authenticating and authorizing the user/admin and also
provides the connection strings to various component's of Gluu CE or site to fetch required information for the installed and configured components during setup after installation. For setup/configuration detail, please refer to Setup Script Options ox-ldap.properties file will be stored under /etc/gluu/conf/

Properties in Ox-LDAP#

Below are the properties that are written in ox-ldap.properties for the Gluu CE server to connect with LDAP.

Property Description
Bind DN Stores the DN of the connecting LDAP server
Bind Password Stores the password of the DN, which is provided during setup
servers LDAP server with port number
useSSL Provides a boolean value, depending on the SSL used, and is set to true or false
maxconnections number of maximum connections to be used, this is can be left to be set it to default
certsDir Path of the certificates stored
confDir Path of the configuration directory
binaryAttributes This property should be left to be default ObjectGUID

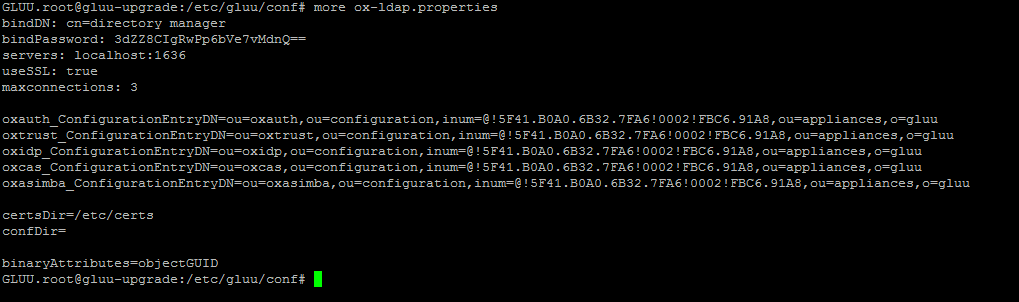

Below screenshot is an example of ox-ldap.properties

example
