oxd-spring #

In this tutorial we demonstrate how a java spring web application can leverage oxd 4.4 for SSO using the authorization code flow.

Attention

For oxd-4.x and oxd-spring application running on different servers then it is essential to install and configure SSL certificate by Certificate Authority with oxd. This is required so that oxd-spring application can access oxd-server without throwing any ssl exception. But, if oxd-spring and oxd-server are running on same server then oxd-spring application will work even with oxd configured with self-signed certificate.

Prerequisites#

  1. Java 8+

    Install Java Standard Edition version 8 or higher.

  2. Maven 3+

    Download maven and follow the simple installation instructions. Ensure the bin directory is added to your PATH.

  3. Install Gluu Server bundled with oxd.

Run#

  1. Ensure that Gluu server and oxd-server are running and accessible.

  2. Clone oxd-spring project from Github to your local disk

    If you have git installed, just open a console and run below command to clone the project.

    git clone https://github.com/GluuFederation/oxd-spring.git

  3. In the cloned oxd-spring project modify ${OXD_SPRING_HOME}\src\main\resources\application.properties file to change the below configuration parameters:

    S.No. Property Name Property Description Example
    1 server.port The port of running oxd-spring application. server.port=8080
    2 oxd.server.op-host Provide the URL of your OpenID Provider (OP). oxd.server.op-host=https://www.your-ophost.com
    3 oxd.server.host Hostname of oxd-server oxd.server.host=www.your-oxd-server.com
    4 oxd.server.port Port of oxd-server oxd.server.port=8443
    5 oxd.server.acr-values Comma separated preferred authentication methods. oxd.server.acr- values=basic
    6 oxd.server.scopes Comma separated scopes that the client can use. oxd.server.scopes=openid,profile,uma_protection,oxd
    7 oxd.server.grant-types Comma separated Grant Types that the client can use. oxd.server.grant-types=authorization_code,client_credentials
  4. Change directory to ${OXD_SPRING_HOME} and run maven command to build the executable jar:

    cd oxd-spring
    mvn clean package -Dmaven.test.skip=true


    Depending on connection speed and computer performance, it may take a couple of minutes to download all required dependencies and build the executable jar file.

  5. Now you can run the executable jar using below command:

    java -jar target/oxd-spring-4.4-SNAPSHOT.jar


    The first time you run the application, it tries to register site using the parameters specified in application.properties. If registration was successful, then registration details and oxdId are stored in the H2 database (which is embedded in oxd-spring-4.4-SNAPSHOT.jar). Next time you run the application with the same oxd.server.op-host, it will obtain oxdId from database.

  6. Open a browser and point to https://localhost:8080/. This will display Home Page of oxd-spring application with Login To Gluu button. Click on the button to log into application using OAuth 2.0 security.

    Home Page

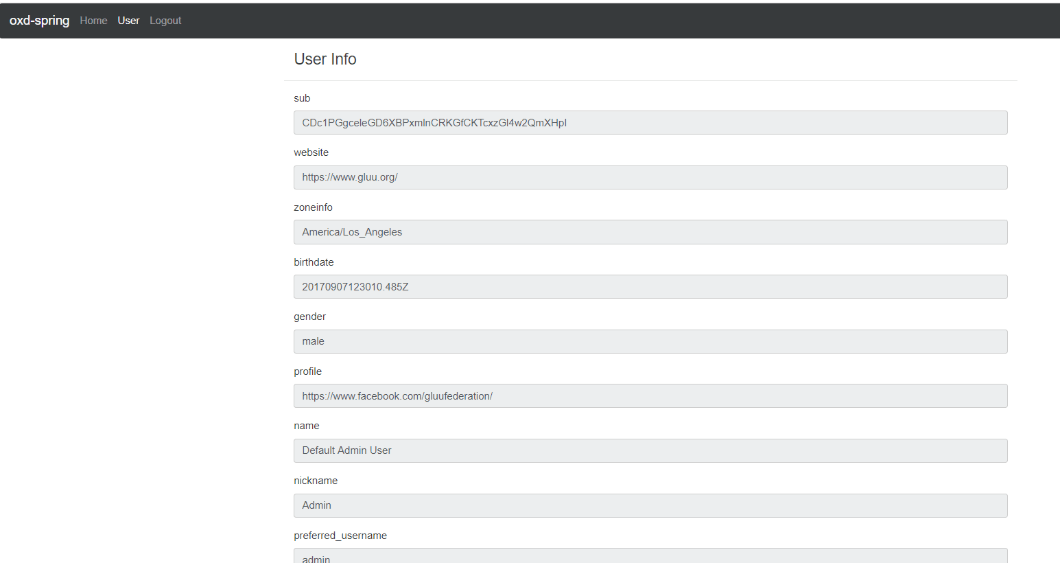

  7. After login the application will display information of the logged in user from OP. To Logout of application and click on Logout link on top menu. This will initiate the logout process and OP will make the browser return to a predefined Post Logout Uri.

    Uder Info

Support#

Please report technical issues and suspected bugs on our Support Page.
