C Sharp#

Overview#

The following documentation demonstrates how to use Gluu's OAuth 2.0 client software, oxd, to send users from a C# web app to the Gluu Server for authentication and authorization.

What is oxd?#

oxd is a middleware service that provides API's that can be called by a web application that are easier than directly calling the API's of an OpenID Connect Provider (OP) or an UMA Authorization Server (AS). oxd is designed to work as a standalone service demon. It's a web server, running in an embedded Jetty server. Just start it and stop it like you would any other unix service.

By default, oxd is restricted to localhost, which means these APIs cannot be reached from another server on the network--only by services running the server locally. oxd should be deployed on each server that has web applications.

Installation#

Install the oxd server using the following instructions: installation instructions.

Note: In order to run oxd, you will need a valid license which can be acquired on the oxd website. Signing up for a license is free, and even includes a $50 credit towards your first 60 days of use.

Configuration#

Configure oxd using the following instructions: configuration instructions

Note

You will need your license information to properly configure oxd.

Pre-requisites#

CSharp will work only on windows machine installed with .Net framework version 4.0 and above

Configuration Procedure with Gluu CE#

  1. Download CSharp from repo.
  2. Build the site from repo in IIS.

  3. Run oxd under bin using the command.

        #java -Doxd.server.config=../conf/oxd-conf.json -cp ../lib/bcprov-jdk15on-1.54.jar;../lib/resteasy-jaxrs-2.3.7.Final.jar;../lib/oxd-server-jar-with-dependencies.jar org.xdi.oxd.server.ServerLauncher

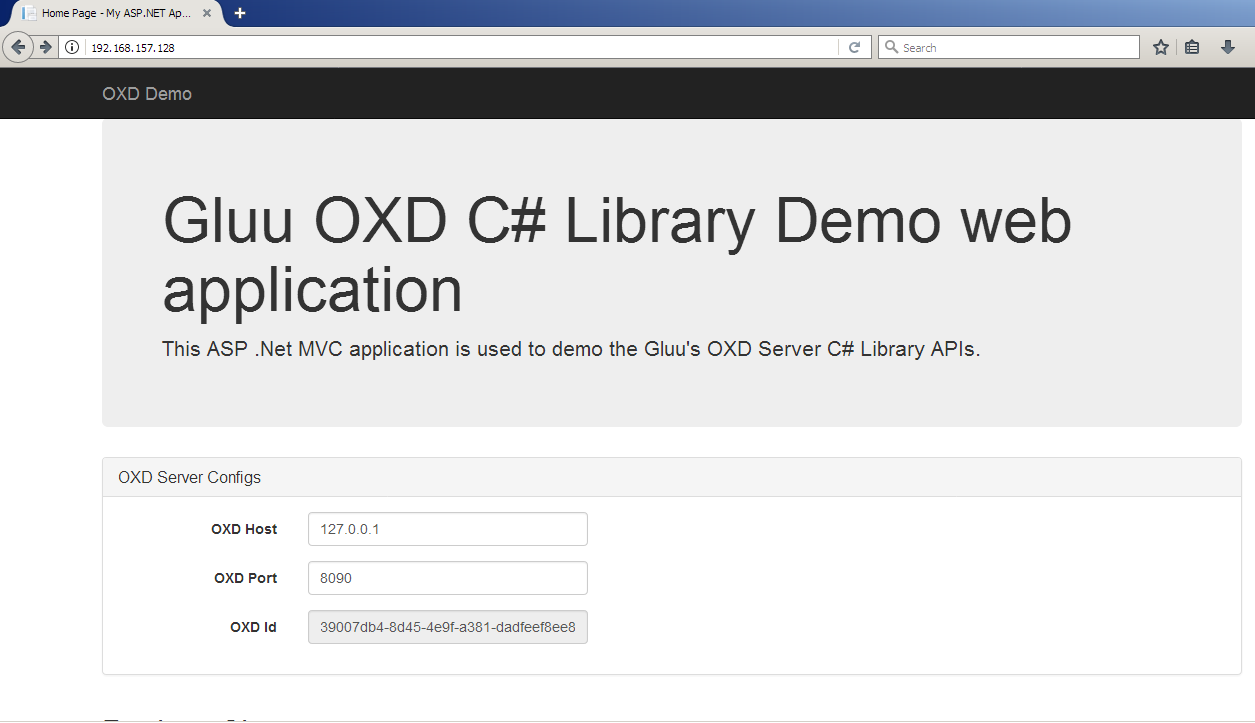

  4. Browse oxd site using ip address or localhost:1329

  5. Enter all the required fields to configure oxd server a. OXD Host : 127.0.0.1 b. OXD Port : default port will be 8099 c. Redirect URL : URL of Gluu CE server oxdconfig

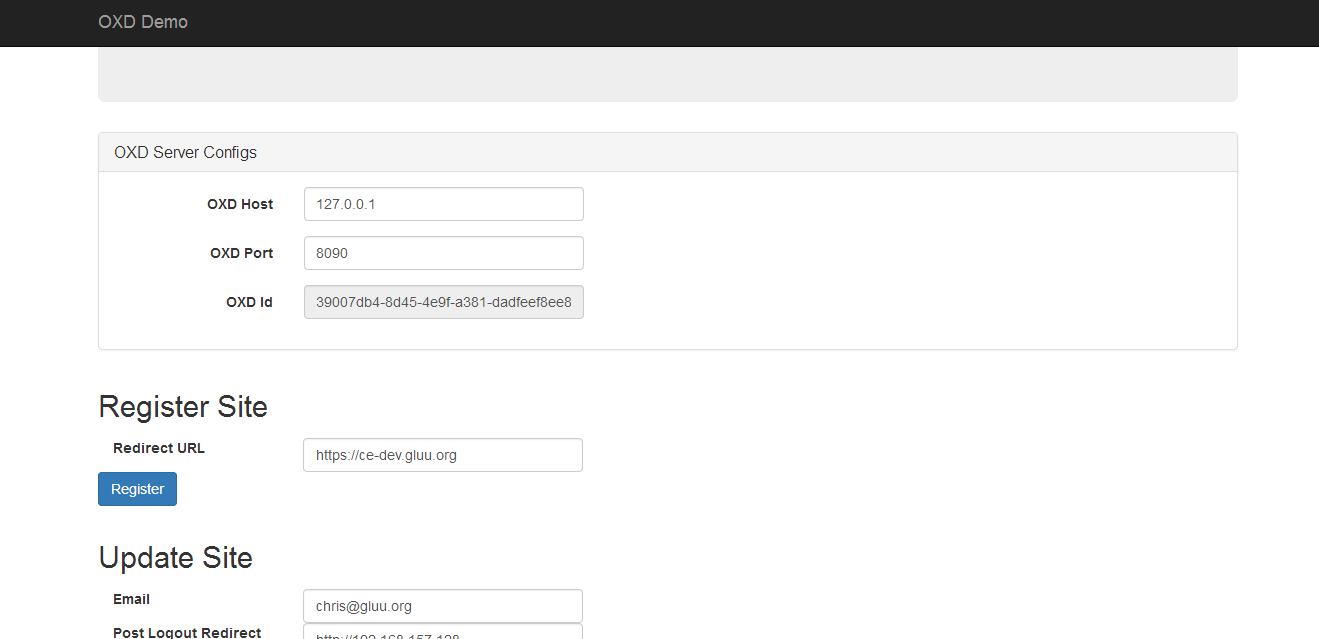

  6. Click on Register button to register the site with Gluu CE server, once the site is registered, OXD id will be populated automatically. oxdregister
  7. Enter email address and Post Logout url Redirect URL.

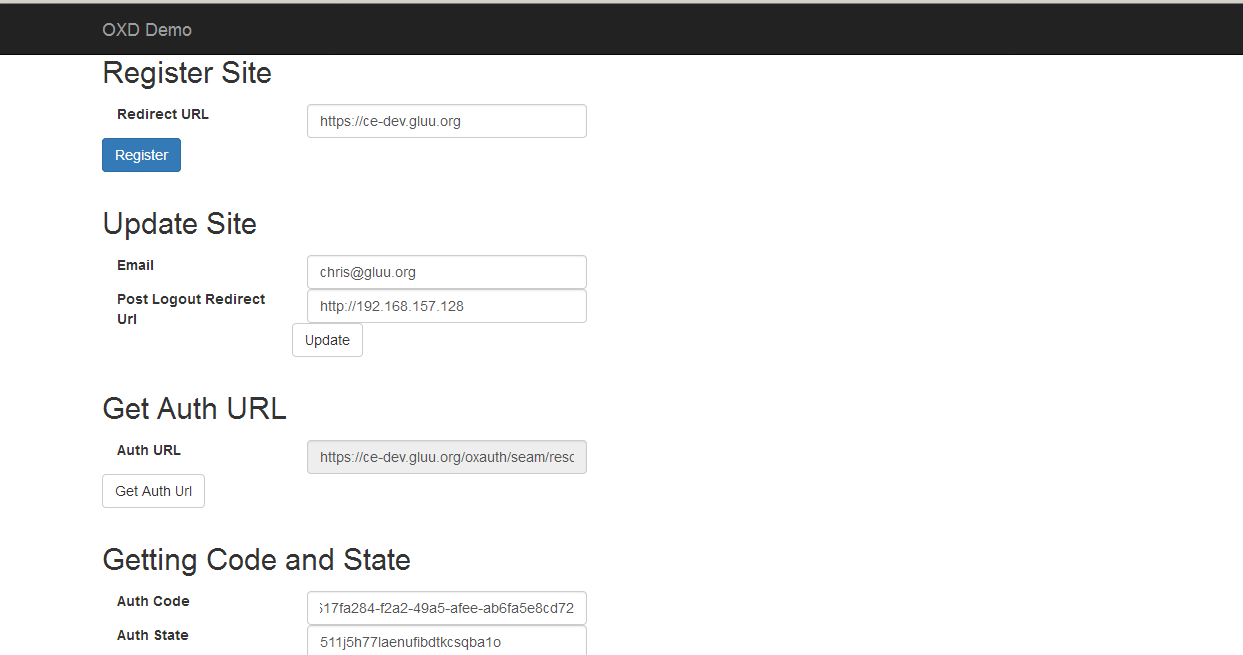

  8. Click on Update to update the site. oxdupdate
  9. Click on Get Auth to the Auth URL. oxdauth
  10. Each field will be enabled only if the previous field is populated correctly.

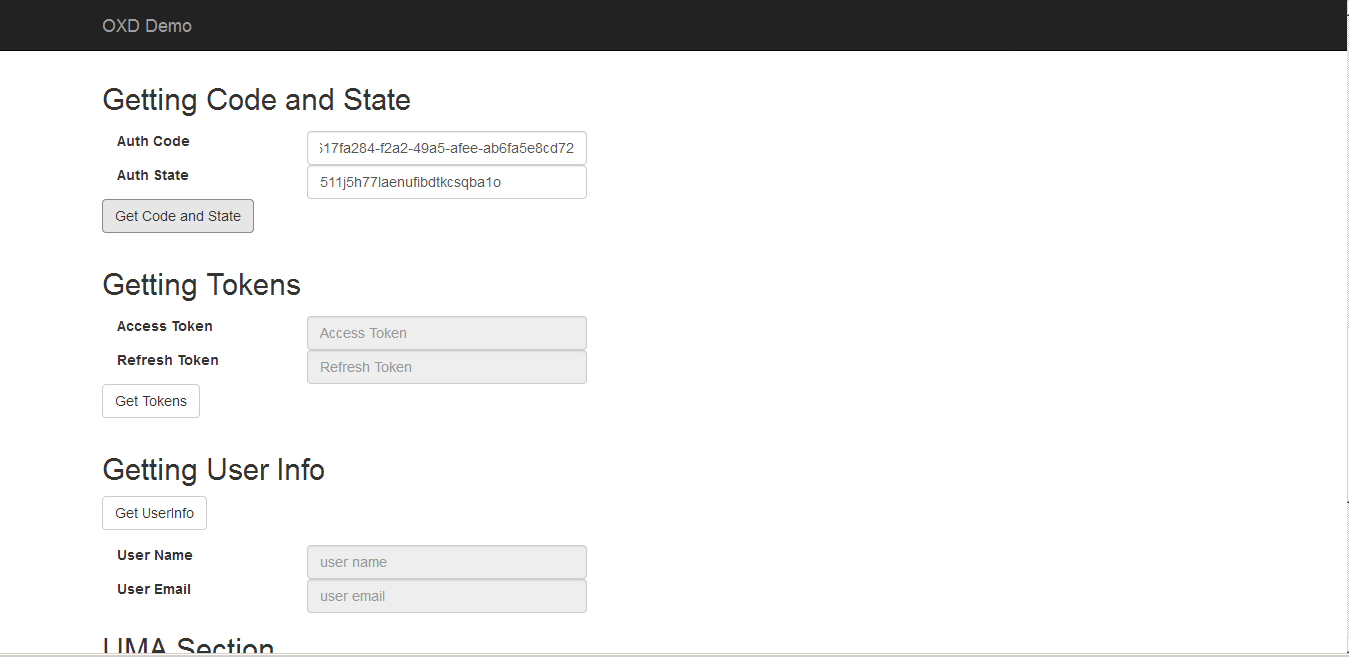

  11. Complete the configuration in similar way. oxdauth

Sample Code#

Register Site#

Required parameters: * op_host * port - the port of the oxd server * redirectURI - A URL which the OP is authorized to redirect the user after authorization.

Request:

public RegisterSiteResponse RegisterSite(string host, int port, string redirectUrl)
    {
        try
        {
            CommandClient client = new CommandClient(host, port);
            RegisterSiteParams param = new RegisterSiteParams();
            param.SetAuthorizationRedirectUri(redirectUrl);
            param.SetPostLogoutRedirectUri(redirectUrl);
            param.SetClientLogoutUri(Lists.newArrayList(new string[] { "" }));

            Command cmd = new Command(CommandType.register_site);
            cmd.setParamsObject(param);

            string commandresponse = client.send(cmd);
            RegisterSiteResponse response = new RegisterSiteResponse(JsonConvert.DeserializeObject<dynamic>(commandresponse).data);
            Assert.IsNotNull(response);
            Assert.IsTrue(!String.IsNullOrEmpty(response.getOxdId()));
            StoredValues._oxd_id = response.getOxdId();
            return response;
        }
        catch (Exception ex)
        {
            Console.WriteLine(ex.Message);
            Logger.Debug(ex.Message);
            return null;
        }
    }

Response:

{
    "status":"ok",
    "data":{
        "oxd_id":"6F9619FF-8B86-D011-B42D-00CF4FC964FF"
    }
}

Update Site Registration#

Required parameters: * op_host * port

Request:

    public UpdateSiteResponse UpdateSiteRegisteration(string host, int port)
    {
        try
        {
            CommandClient client = new CommandClient(host, port);
            UpdateSiteParams param = new UpdateSiteParams();
            param.SetOxdId(StoredValues._oxd_id);
            param.SetAuthorizationRedirectUri("http://www.test.com/wp-login.php");
            param.SetPostLogoutRedirectUri("http://www.test.com/wp-login.php?action=logout&_wpnonce=a3c70643e9");
            param.SetApplicationType("web");
            param.SetRedirectUris(Lists.newArrayList(new string[] { "http://www.test.com/wp-login.php" }));
            param.SetAcrValues(new List<string>());
            param.SetClientJwksUri("");
            param.SetContacts(Lists.newArrayList(new string[] { "test@gmail.com" }));
            param.SetGrantType(Lists.newArrayList(new string[] { "authorization_code" }));
            param.SetClientTokenEndpointAuthMethod("");
            param.SetClientLogoutUri(Lists.newArrayList(new string[] { "http://www.test.com/wp-login.php?action=logout&_wpnonce=a3c70643e9" }));

            Command cmd = new Command(CommandType.update_site_registration);
            cmd.setParamsObject(param);

            string commandresponse = client.send(cmd);
            UpdateSiteResponse response = new UpdateSiteResponse(JsonConvert.DeserializeObject<dynamic>(commandresponse).data);
            Assert.IsNotNull(response);
            Assert.IsTrue(!String.IsNullOrEmpty(response.getOxdId()));
            return response;
        }
        catch (Exception ex)
        {
            Console.WriteLine(ex.Message);
            Logger.Debug(ex.Message);
            return null;
        }
    }

Response:

{
    "status":"ok"
}

Get Authorization URL#

Required parameters: * op_host * port

Request:

    public string GetAuthorizationURL(string host, int port)
    {
        try
        {
            CommandClient client = new CommandClient(host, port);

            GetAuthorizationUrlParams param = new GetAuthorizationUrlParams();
            param.SetOxdId(StoredValues._oxd_id);
            param.SetAcrValues(new List<string>());

            Command cmd = new Command(CommandType.get_authorization_url);
            cmd.setParamsObject(param);

            string response = client.send(cmd);
            GetAuthorizationUrlResponse res = new GetAuthorizationUrlResponse(JsonConvert.DeserializeObject<dynamic>(response).data);

            Assert.IsNotNull(res);
            Assert.IsTrue(!String.IsNullOrEmpty(res.getAuthorizationUrl()));
            return res.getAuthorizationUrl();
        }
        catch (Exception ex)
        {
            Console.WriteLine(ex.Message);
            Logger.Debug(ex.Message);
            return ex.Message;
        }
    }

Response:

{
    "status":"ok",
    "data":{
        "authorization_url":"https://server.example.com/authorize?response_type=code&client_id=s6BhdRkqt3&redirect_uri=https%3A%2F%2Fclient.example.org%2Fcb&scope=openid%20profile&acr_values=duo&state=af0ifjsldkj&nonce=n-0S6_WzA2Mj"
    }
}

Get Tokens by Code#

Required parameters: * op_host * port * userId * userSecret

Request:

    public GetTokensByCodeResponse GetTokenByCode(string host, int port, string userId, string userSecret)
    {
        try
        {
            CommandClient client = new CommandClient(host, port);
            GetTokensByCodeParams param = new GetTokensByCodeParams();
            param.SetOxdId(StoredValues._oxd_id);
            param.SetCode(get_authorization_code.GetAuthorizationCode(host, port, userId, userSecret));
            param.SetScopes(Lists.newArrayList(new string[] { "openid", "profile" }));
            Command cmd = new Command(CommandType.get_tokens_by_code);
            cmd.setParamsObject(param);
            string commandresponse = client.send(cmd);
            GetTokensByCodeResponse response = new GetTokensByCodeResponse(JsonConvert.DeserializeObject<dynamic>(commandresponse).data);
            Assert.IsNotNull(response);
            return response;
        }
        catch (Exception ex)
        {
            Console.WriteLine(ex.Message);
            Logger.Debug(ex.Message);
            return null;
        }
    }

Response:

{
    "status":"ok",
    "data":{
        "access_token":"SlAV32hkKG",
        "expires_in":3600,
        "refresh_token":"aaAV32hkKG1"
        "id_token":"eyJ0 ... NiJ9.eyJ1c ... I6IjIifX0.DeWt4Qu ... ZXso",
        "id_token_claims": {
             "iss": "https://server.example.com",
             "sub": "24400320",
             "aud": "s6BhdRkqt3",
             "nonce": "n-0S6_WzA2Mj",
             "exp": 1311281970,
             "iat": 1311280970,
             "at_hash": "MTIzNDU2Nzg5MDEyMzQ1Ng"
        }
    }
}
!!!Note: GetTokenByCode method further calls the GetAuthorizationCode for the Authorization code to be used

public static string GetAuthorizationCode(string host, int port, string userId, string userSecret)
{
    try
    {
        CommandClient client = new CommandClient(host, port);
        GetAuthorizationCodeParams param = new GetAuthorizationCodeParams();
        param.SetOxdId(StoredValues._oxd_id);
        param.SetUserName(userId);
        param.SetPassword(userSecret);
        param.SetAcrValues(new List<string>());
        Command cmd = new Command(CommandType.get_authorization_code);
        cmd.setParamsObject(param);
        string response = client.send(cmd);
        GetAuthorizationCodeResponse res = new GetAuthorizationCodeResponse(JsonConvert.DeserializeObject<dynamic>(response).data);
        Assert.IsNotNull(res);
        Assert.IsTrue(!String.IsNullOrEmpty(res.getCode()));
        return res.getCode();
    }
    catch (Exception ex)
    {
        Console.WriteLine(ex.Message);
        Logger.Debug(ex.Message);
        return ex.Message;
    }
}

Get User Info#

Required parameters: * op_host * port * accessToken

Request:

    public GetUserInfoResponse GetUserInfo(string host, int port, string accessToken)
    {
        try
        {
            CommandClient client = new CommandClient(host, port);

            GetUserInfoParams param = new GetUserInfoParams();
            param.setOxdId(StoredValues._oxd_id);
            param.setAccessToken(accessToken);

            Command cmd = new Command(CommandType.get_user_info);
            cmd.setParamsObject(param);

            string response = client.send(cmd);
            GetUserInfoResponse res = new GetUserInfoResponse(JsonConvert.DeserializeObject<dynamic>(response).data);
            Assert.IsNotNull(res);
            return res;
        }
        catch (Exception ex)
        {
            Console.WriteLine(ex.Message);
            Logger.Debug(ex.Message);
            return null;
        }
    }

Response:

{
    "status":"ok",
    "data":{
        "claims":{
            "sub": ["248289761001"],
            "name": ["Jane Doe"],
            "given_name": ["Jane"],
            "family_name": ["Doe"],
            "preferred_username": ["j.doe"],
            "email": ["janedoe@example.com"],
            "picture": ["http://example.com/janedoe/me.jpg"]
        }
    }
}

Logout#

Required parameters: * op_host * port

Request:

    public LogoutResponse GetLogoutURL(string host, int port)
    {
        try
        {
            CommandClient client = new CommandClient(host, port);

            GetLogoutUrlParams param = new GetLogoutUrlParams();
            param.setOxdId(StoredValues._oxd_id);
            param.setIdTokenHint("dummy_token");
            param.setState(Guid.NewGuid().ToString());

            Command cmd = new Command(CommandType.get_logout_uri);
            cmd.setParamsObject(param);

            string response = client.send(cmd);
            LogoutResponse res = new LogoutResponse(JsonConvert.DeserializeObject<dynamic>(response).data);
            Assert.IsNotNull(res);
            return res;
        }
        catch (Exception ex)
        {
            Console.WriteLine(ex.Message);
            Logger.Debug(ex.Message);
            return null;
        }
    }

Response:

{
    "status":"ok",
    "data":{
        "uri":"https://<server>/end_session?id_token_hint=<id token>&state=<state>&post_logout_redirect_uri=<...>"
    }
}

UMA RS Resource protection#

Request:

   private UmaRsProtectResponse ProtectResources(OxdModel oxdModel)
   {
        var protectParams = new UmaRsProtectParams();
        var protectClient = new UmaRsProtectClient();

        //prepare input params for Protect Resource
        protectParams.OxdId = oxdModel.OxdId;
        protectParams.ProtectResources = new List<ProtectResource>
        {
            new ProtectResource
            {
                Path = "/scim",
                ProtectConditions = new List<ProtectCondition>
                {
                    new ProtectCondition
                    {
                        HttpMethods = new List<string> { "GET" },
                        Scopes = new List<string> { "https://scim-test.gluu.org/identity/seam/resource/restv1/scim/vas1" },      // Your hosted Gluu server URL
                        TicketScopes = new List<string> { "https://scim-test.gluu.org/identity/seam/resource/restv1/scim/vas1" } // Your hosted Gluu server URL
                    }
                }
            }
        };

        //Protect Resources
        var protectResponse = protectClient.ProtectResources(oxdModel.OxdHost, oxdModel.OxdPort, protectParams);

        //process response
        if(protectResponse.Status.ToLower().Equals("ok"))
        {
            return protectResponse;
        }
        throw new Exception("Procteting Resource is not successful. Check OXD Server log for error details.");
   }

UMA RS Check access#

Request:

    private UmaRsCheckAccessResponse CheckAccess(string rpt, string path, string httpMethod, OxdModel oxdModel)
    {
        var checkAccessParams = new UmaRsCheckAccessParams();
        var checkAccessClient = new UmaRsCheckAccessClient();

        //prepare input params for Check Access
        checkAccessParams.OxdId = oxdModel.OxdId;
        checkAccessParams.RPT = rpt;
        checkAccessParams.Path = path;
        checkAccessParams.HttpMethod = httpMethod;

        //Check Access
        var checkAccessResponse = checkAccessClient.CheckAccess(oxdModel.OxdHost, oxdModel.OxdPort, checkAccessParams);

        //process response
        return checkAccessResponse;
    }

Response:

Access Denied with valid Ticket

UMA Get RPT#

Request:

  private GetRPTResponse ObtainRpt(OxdModel oxdModel)
    {
        var getRptParams = new UmaRpGetRptParams();
        var getRptClient = new UmaRpGetRptClient();

        //prepare input params for Protect Resource
        getRptParams.OxdId = oxdModel.OxdId;
        getRptParams.ForceNew = false;

        //Get RPT
        var getRptResponse = getRptClient.GetRPT(oxdModel.OxdHost, oxdModel.OxdPort, getRptParams);

        //process response
        if (getRptResponse.Status.ToLower().Equals("ok"))
        {
            return getRptResponse;
        }

        throw new Exception("Obtaining RPT is not successful. Check OXD Server log for error details.");
    }

Response:

Expect a valid RPT is returned
!!!Note: Once you get valid RPT you need to follow this steps again:

UMA RS Check access with valid RPT#

Request:

UMA RS Check access again with valid RPT

Response:

Access Denied with valid data

Authorize RPT#

Request:

    private UmaRpAuthorizeRptResponse AuthorizeRpt(string rpt, string ticket, OxdModel oxdModel)
    {
        var authorizeRptParams = new UmaRpAuthorizeRptParams();
        var authorizeRptClient = new UmaRpAuthorizeRptClient();

        //prepare input params for Check Access
        authorizeRptParams.OxdId = oxdModel.OxdId;
        authorizeRptParams.RPT = rpt;
        authorizeRptParams.Ticket = ticket;

        //Authorize RPT
        var authorizeRptResponse = authorizeRptClient.AuthorizeRpt(oxdModel.OxdHost, oxdModel.OxdPort, authorizeRptParams);

        //process response
        return authorizeRptResponse;
    }

Response:

Status should be ok

UMA RS Check access (Check Access again after authorizing RPT)#

Request:

UMA RS Check access again after authorizing RPT

Response:

Access Granted

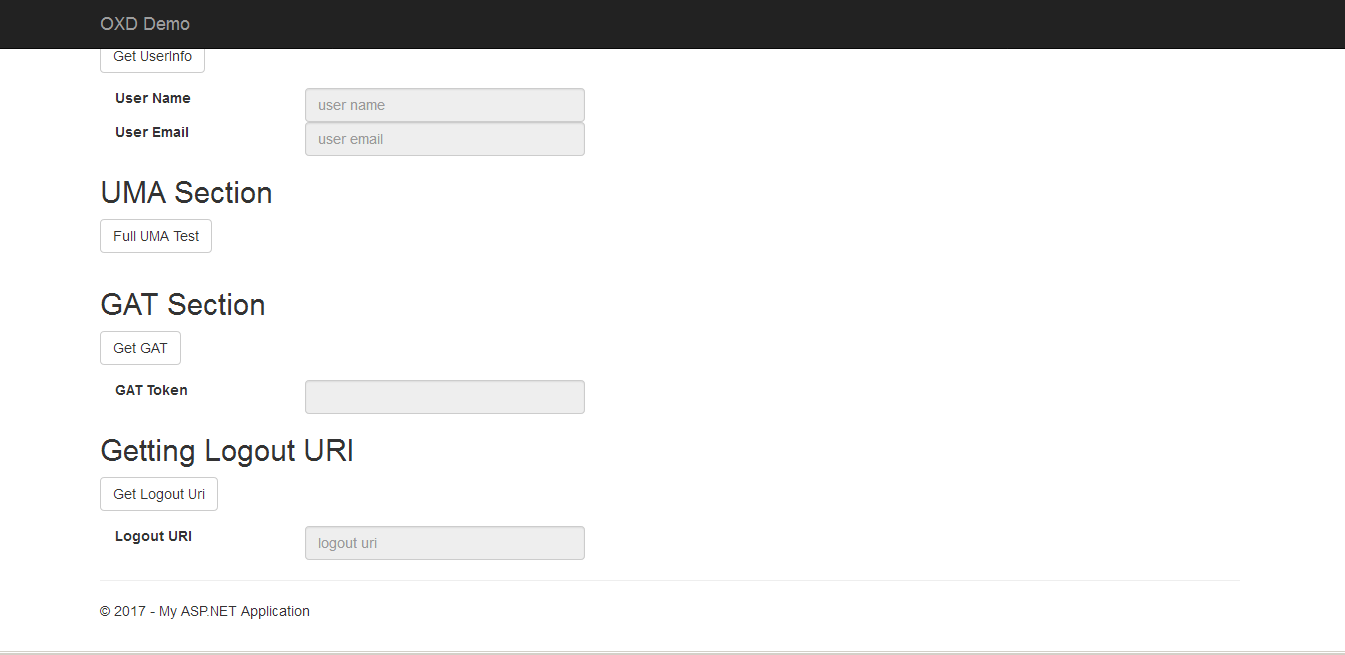

UMA Get GAT#

Request:

public ActionResult GetGat(OxdModel oxd)
{
    var getGatInputParams = new GetGATParams();
    var getGatClient = new GetGATClient();

    //prepare input params for Getting GAT
    getGatInputParams.OxdId = oxd.OxdId;
    getGatInputParams.Scopes = new List<string> {
                                    "https://scim-test.gluu.org/identity/seam/resource/restv1/scim/vas1",
                                    "https://scim-test.gluu.org/identity/seam/resource/restv1/scim/vas2" };

    //Get GAT
    var getGatResponse = getGatClient.GetGat(oxd.OxdHost, oxd.OxdPort, getGatInputParams);

    //Process response
    return Json(new { getGatResponse = getGatResponse.Data.Rpt });
}
