Gluu Server Logs#

Overview#

When it comes to troubleshooting issues in the Gluu Server-from service hiccups to outages-logs are the best place to start.

The Gluu Server administrator can investigate logs from the oxTrust View Logs feature or directly with SSH access to the Gluu-Server container.

View Log File#

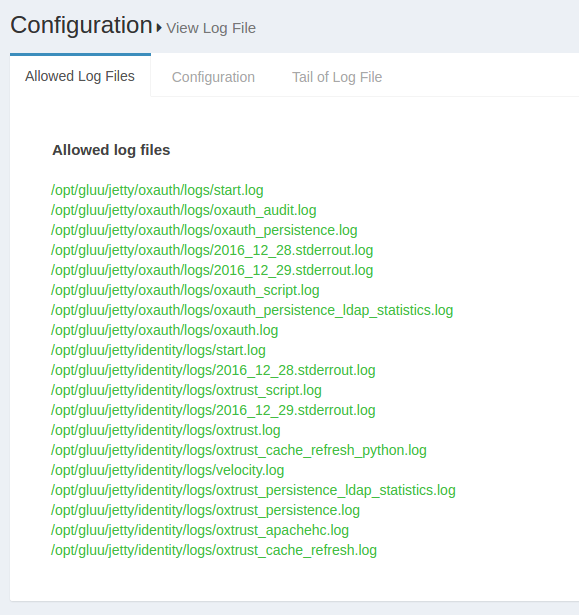

Previously configured log files can be viewed using the View log file feature. This feature can be accessed through the configuration menu using Configuration --> View Log File.

view-log

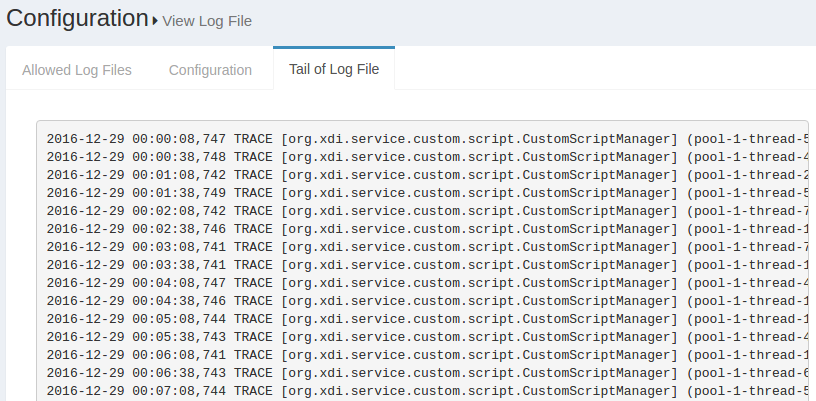

The Display last lines count field contains the lines that will be displayed in the Web GUI. If the field contains the value 400, then the Gluu Server will show the last 400 lines of the log in the GUI. The screenshot below shows an according example.

tail-log

Note

Logs can be set up for Apache Kafka log aggregation using this tutorial

Log Levels#

Logging Levels configuration through OxTrust UI

The following log levels are available in oxTrust:

Log Level Messages Logged
Trace All messages
Debug Debug level and above
Info Informational level and above
Warn Warning level and above
Error Error level and above
Fatal Only fatal errors
off Logging is disabled

These logging levels can also be set in oxTrust UI.

  1. Login to oxTrust UI as admin or with an administrator account.

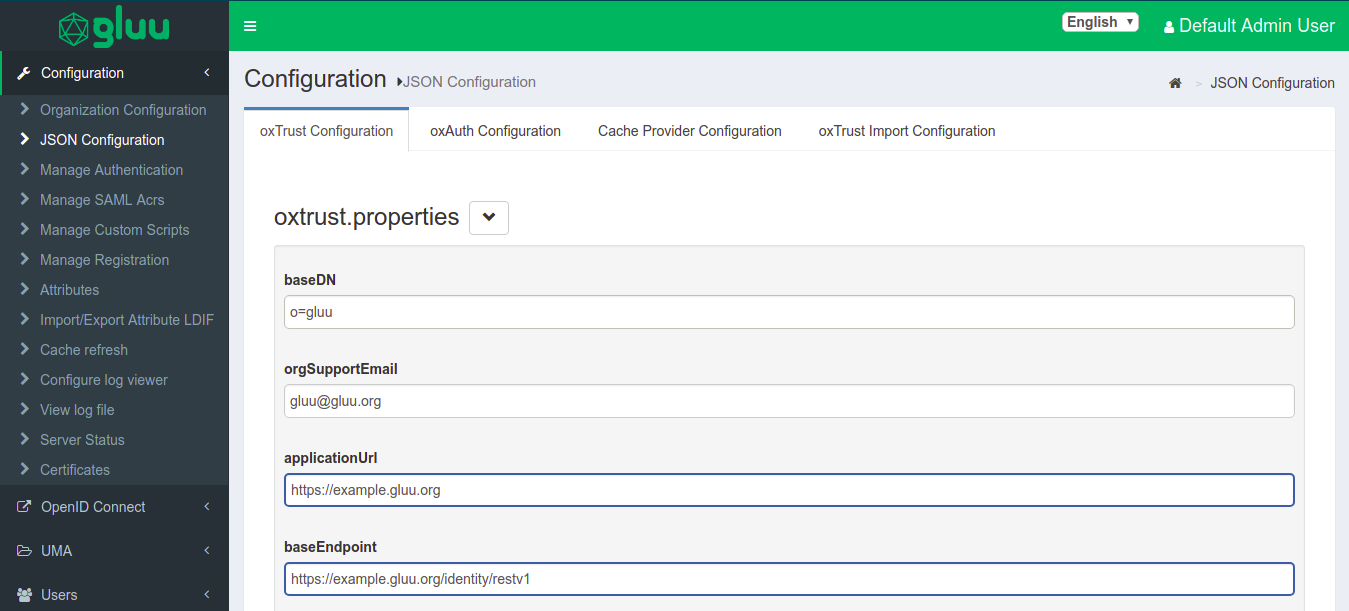

  2. Navigate to Configuration > JSON Configuration > OxTrust Configuration Tab. JSONConfig
  3. Scroll to the very bottom of the page.
  4. Click on the logging level and select the levels from the drop down.
  5. Default value will be set to Default, you can change the level as per your requirement for extensive troubleshooting.
  6. Click on Save Configuration to save the configuration.

Changing Log Levels using log4j2.xml

Note

It is recommended to use oxTrust UI to change the logging levels.

Gluu Server logs use the log4j2 logging levels, which can be changed in a copy of the log4j2.xml configuration file designated in the JSON configuration.

The original log4j2.xml can be found in the following path:

/opt/jetty-9.4/temp/jetty-localhost-8082-identity.war-_identity-any-8516765662711672787.dir

Move a copy of log4j2.xml to any location outside the temp directory, then specify the new filepath in the externalLoggerConfiguration oxAuth JSON setting.

The same file can be found in all incorporated Gluu apps, i.e oxAuth, IDP, oxAuth-RP and Identity.

The available logging levels are:

Log Level Messages Logged
Trace All messages
Debug Debug level and above
Info Informational level and above
Warn Warning level and above
Error Error level and above
Fatal Only fatal errors
off Logging is disabled

The following files define the log levels in Gluu Server. Please edit the file with the levels given above and restart the jetty server. The following section is taken from a live Gluu Server log4j.xml file showing different log levels for different logs. The changes made this section will reflect in the logs.

<category name="org.gluu.oxauth">
        <priority value="TRACE" />
    </category>

    <!- ############### Gluu ################# ->
    <category name="org.gluu">
        <priority value="TRACE" />
    </category>

    <!- ############### openxdi ################# ->
    <category name="org.openxdi">
        <priority value="TRACE" />
    </category>

    <!- ############### oxTrust ################# ->
    <category name="org.gluu.oxtrust">
        <priority value="TRACE" />
    </category>

    <!- ############### Embedded JBoss AS ################# ->
    <category name="org.jboss">
        <priority value="ERROR" />
    </category>
    <category name="com.arjuna">
        <priority value="ERROR" />
    </category>

Restart any changed services to allow the changes to take effect.

Setup Logs#

The setup logs are stored inside the /install/community-edition-setup/ folder. There are two logs available, one detailing the setup process and the other documenting the errors:

  1. setup.log
  2. setup_error.log

Core logs#

The available log files for Gluu Server Community Edition inside the chroot environment are listed below.

Log File Component
/install/community-edition-setup/setup.log Setup detail log
/install/community-edition-setup/setup_error.log Setup error log
/opt/gluu/jetty/idp/logs/start.log Logs time-stamp when IDP starts
/opt/shibboleth-idp/logs/idp-warn.log
/opt/shibboleth-idp/logs/idp-process.log		 IDP diagonostic log Read more..
/opt/shibboleth-idp/logs/idp-audit.log General audit log Read more..
/opt/shibboleth-idp/logs/idp-consent-audit.log Consent audit log Read more..
/opt/gluu/node/passport/node_modules/redis-parser/isolate-0x3615b50-v8.log
/opt/gluu/node/passport/node_modules/redis-parser/isolate-0x28e7b50-v8.log		 Passport log
/opt/gluu/jetty/oxauth/logs/start.log Logs time-stamp when oxAuth starts
/opt/gluu/jetty/oxauth/logs/oxauth_audit.log General audit log
/opt/gluu/jetty/oxauth/logs/oxauth_persistence.log Logs connection with LDAP
/opt/gluu/jetty/oxauth/logs/oxauth_script.log Logs for oxAuth custom script execution
/opt/gluu/jetty/oxauth/logs/oxauth.log General log for oxAuth service
/opt/gluu/jetty/oxauth-rp/logs/start.log Logs time-stamp when oxAuthRP starts
/opt/gluu/jetty/oxauth-rp/logs/oxauth-rp.log General oxAuthRP log
/opt/gluu/jetty/identity/logs/start.log Logs time-stamp when oxTrust starts
/opt/gluu/jetty/identity/logs/oxtrust_script.log
/opt/gluu/jetty/identity/logs/oxtrust.log Logs for oxTrust custom script execution
/opt/gluu/jetty/identity/logs/oxtrust_persistence.log Logs connection with LDAP
/opt/gluu/jetty/identity/logs/oxtrust_cache_refresh.log Logs events relating to cache refresh
/opt/gluu/jetty/identity/logs/oxtrust_velocity.log Log events related to the Apache Velocity template engine
/opt/gluu/jetty/identity/logs/oxtrust_cleaner.log Logs information about the oxTrust clean-up services

oxAuth logs#

The oxAuth logs contain the information about oxAuth authentication process and errors.
The key oxAuth logs are

  1. oxauth.log under /opt/gluu/jetty/oxauth/logs/
    This log is gathering most of the authentication related information. Generally this is the first log to review for any authentication-related troubleshooting, like authentication failure or missing clients etc. Here's an example showing a successful user authentication:

    2016-07-16 15:43:28,232 INFO  [org.gluu.oxauth.auth.Authenticator] Authentication success for Client: '@!EFCB.890F.FB6C.2603!0001!0A49.F454!0008!F047.7275'
2016-07-16 15:43:28,232 TRACE [org.gluu.oxauth.auth.Authenticator] Authentication successfully for '@!EFCB.890F.FB6C.2603!0001!0A49.F454!0008!F047.7275'
2016-07-16 15:43:28,238 DEBUG .gluu.oxauth.token.ws.rs.TokenRestWebServiceImpl] Attempting to request access token: grantType = authorization_code, code = 61ba3c0d-42c4-4f1f-8420-fd5f6707f1b1, redirectUri = https://test.gluu.org/identity/authentication/authcode, username = null, refreshToken = null, clientId = null, ExtraParams = {grant_type=[Ljava.lang.String;@1add2a62, redirect_uri=[Ljava.lang.String;@2e0995b5, code=[Ljava.lang.String;@7743b5af}, isSecure = true, codeVerifier = null
2016-07-16 15:43:28,249 DEBUG [org.gluu.oxauth.service.UserService] Getting user information from LDAP: userId = zico

  2. oxauth_script.log under /opt/gluu/jetty/oxauth/logs/
    Most of the custom script's initialization and few more information are loaded here in this script. In the sample log below we can see 'Super Gluu' 2FA has been loaded in the Gluu Server:

    2016-07-16 19:06:32,705 INFO  [org.gluu.service.PythonService] (pool-2-thread-2) oxPush2. Initialization
2016-07-16 19:06:32,713 INFO  [org.gluu.service.PythonService] (pool-2-thread-2) oxPush2. Initialize notification services
2016-07-16 19:06:32,750 INFO  [org.gluu.service.PythonService] (pool-2-thread-2) oxPush2. Initialized successfully. oneStep: 'False', twoStep: 'True', pushNotifications: 'False'

  3. oxauth_persistence_duration.log under /opt/gluu/jetty/oxauth/logs/
    This log contains information on the total execution times for LDAP operations such as add and search. It records at the DEBUG level, so it does not affect production environment performance.

oxTrust logs#

  1. oxtrust.log under /opt/gluu/jetty/identity/logs
    This log gather logs related to Gluu Server Admin panel (called oxTrust). For example, what is the clientID of an oxTrust session? Or, what scopes are being used, etc. In the example below, you can see an admin user has successfully logged into the test.gluu.org Gluu Server admin panel, has the proper authorizationCode, a redirectURI, and the user's role:

    2016-07-16 16:41:55,690 INFO  [org.gluu.oxtrust.action.Authenticator] authorizationCode : 555a7586-6ca2-4b39-ab39-2ac78ec81524
2016-07-16 16:41:55,690 INFO  [org.gluu.oxtrust.action.Authenticator]  scopes : user_name email openid profile
2016-07-16 16:41:55,691 INFO  [org.gluu.oxtrust.action.Authenticator] clientID : @!EFCB.890F.FB6C.2603!0001!0A49.F454!0008!F047.7275
2016-07-16 16:41:55,691 INFO  [org.gluu.oxtrust.action.Authenticator] getting accessToken
2016-07-16 16:41:55,691 INFO  [org.gluu.oxtrust.action.Authenticator] tokenURL : https://test.gluu.org/oxauth/restv1/token
2016-07-16 16:41:55,691 INFO  [org.gluu.oxtrust.action.Authenticator] Sending request to token endpoint
2016-07-16 16:41:55,692 INFO  [org.gluu.oxtrust.action.Authenticator] redirectURI : https://test.gluu.org/identity/authentication/authcode
2016-07-16 16:41:55,919 DEBUG [org.gluu.oxtrust.action.Authenticator]  tokenResponse : org.gluu.oxauth.client.TokenResponse@1914b8d

  2. oxtrust_script.log under /opt/gluu/jetty/identity/logs
    This log collects information on oxTrust related scripts and their operations. For example, if an organization uses a custom attribute which populates values for every user, then the Gluu Server Administrator needs to use a custom script for their 'Cache Refresh' process. This log will receive information when the custom script runs.

  3. oxtrust_cache_refresh.log under /opt/gluu/jetty/identity/logs
    Cache Refresh related information such as status, primary failure, etc., is available in this log. In the sample snippet below we see the total number of users that have been synced into the Gluu Server, number of failures, and total number of updated users.

    2016-07-16 17:18:17,691 DEBUG [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) Updated person '@!EFCB.890F.FB6C.2603!0001!0A49.F454!0000!40EB.AB8E'
2016-07-16 17:18:17,691 INFO  [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) Updated '2,002' entries
2016-07-16 17:18:17,722 INFO  [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) Failed to update '0' entries
2016-07-16 17:18:17,738 DEBUG [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) Keep external persons: 'true'
2016-07-16 17:18:17,739 DEBUG [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) Count entries '0' for removal from target server
2016-07-16 17:18:17,739 INFO  [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) Removed '0' persons from target server
2016-07-16 17:18:17,739 INFO  [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) There are '2,002' entries before updating inum list
2016-07-16 17:18:17,740 INFO  [gluu.oxtrust.ldap.cache.service.CacheRefreshTimer] (pool-1-thread-9) There are '2,002' entries after removal '0' entries

  4. oxtrust_audit.log under /opt/gluu/jetty/identity/logs
    This log provides basic auditing for oxTrust identity. It gathers information about who did what, when, and from where in the following format:

Date - Object changed - Who applied the change - from which IP

For example:

2018-09-26 09:07:55,938 INFO  [qtp804611486-16]- OPENID CLIENT @!2D59.8992.A7F7.CD81!0001!6290.A960!0008!ACA6.3181.A647.456C **MyOwnClient** ADDED  BY USER Default Admin User FROM IP ADDRESS 192.168.1.6
  1. oxtrust_persistence_duration.log under /opt/gluu/jetty/oxauth/logs/
    This log contains information on the total execution times for LDAP operations such as add and search. It records at the DEBUG level, so it does not affect production environment performance.

client_id and/or client_name logging#

oxTrust configured to generate and view client_id and/or client_name logs. To configure client_id and/or client_name

  • Log in to oxTrust UI

  • Navigate to oxTrust > Configuration > oxAuth

  • For client_id to be populated and viewed in the logs set logClientIdOnClientAuthentication to true

  • For client_name to be populated and viewed in the logs set logClientNameOnClientAuthentication to true

System log location#

These logs contain global system messages.

  • For Ubuntu: /var/log/syslog
  • For RPM based systems: /var/log/messages

Web Server log location#

  • For Debian: /var/log/apache2/
  • For RPM based systems: /var/log/httpd/

Adjust Shibboleth log level#

If troubleshooting SAML issues, it may be necessary to adjust the Shibboleth log level temporarily. To do so, follow these steps.

  1. Navigate to /opt/shibboleth-idp/conf/
  2. Open logback.xml in an editor

  3. Find the following snippet:

    <!-- Logging level shortcuts. -->
<variable name="idp.loglevel.idp" value="INFO" />
<variable name="idp.loglevel.ldap" value="WARN" />
<variable name="idp.loglevel.messages" value="INFO" />
<variable name="idp.loglevel.encryption" value="INFO" />
<variable name="idp.loglevel.opensaml" value="INFO" />
<variable name="idp.loglevel.props" value="INFO" />

  4. Replace INFO with DEBUG to get more logging info

  5. Restart the idp service
  6. Navigate to /opt/shibboleth-idp/logs/
  7. After the issue is resolved, be sure to set the level back to WARN for idp.loglevel.ldap and INFO for the other logs in the production server.

Web Server logs#

Apache httpd / apache2 logs are available in /var/log/httpd or /var/log/apache2 for Ubuntu.

  1. access_log: This log contains information about requests coming into the Gluu Server, success status or requests, execution time for any request etc.

  2. error_log: This log shows error messages if the web server encounter any issue while processing incoming requests.

  3. other_vhosts_access.log: This log is specific to the Gluu Server setup and those links which are being requested by a user from a web browser. An example below:

    test.gluu.org:443 192.168.201.184 - - [17/Jul/2016:18:25:21 +0000] "GET /index.html HTTP/1.1" 200 13239 "-" "Java/1.7.0_95"
test.gluu.org:443 192.168.201.1 - - [17/Jul/2016:18:25:56 +0000] "GET / HTTP/1.1" 302 2185 "-" "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.106 Safari/537.36"
test.gluu.org:443 192.168.201.1 - - [17/Jul/2016:18:25:56 +0000] "GET /identity/ HTTP/1.1" 200 583 "-" "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.106 Safari/537.36"
test.gluu.org:443 192.168.201.1 - - [17/Jul/2016:18:25:56 +0000] "GET /identity/home.htm HTTP/1.1" 302 272 "https://test.gluu.org/identity/" "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.106 Safari/537.36"
test.gluu.org:443 192.168.201.1 - - [17/Jul/2016:18:25:56 +0000] "GET /identity/login?cid=4 HTTP/1.1" 302 474 "https://test.gluu.org/identity/" "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.106 Safari/537.36"
test.gluu.org:443 192.168.201.1 - - [17/Jul/2016:18:25:56 +0000] "GET /oxauth/authorize?scope=openid+profile+email+user_name&response_type=code+id_token&nonce=nonce&redirect_uri=https%3A%2F%2Ftest.gluu.org%2Fidentity%2Fauthentication%2Fauthcode&client_id=%40%21EFCB.890F.FB6C.2603%210001%210A49.F454%210008%21F047.7275 HTTP/1.1" 302 450 "https://test.gluu.org/identity/" "Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/51.0.2704.106 Safari/537.36"

  4. There are few other logs like ssl_access_log , ssl_error_log , and ssl_request_log which are collecting information on port 443 specifically.

Remember the initial GET request will hit the Apache server first, and then be proxied via the AJP port 8082 to . If you see traffic on the web server, but not on Jetty, this is a good place to check to see if something is wrong. For example, you might want to check if the firewall is blocking port 8082 if you see something like this:

    [Thu Jul 14 23:49:19 2016] [error] ajp_read_header: ajp_ilink_receive failed
    [Thu Jul 14 23:49:19 2016] [error] (70007)The timeout specified has expired: proxy: read response failed from (null) (localhost)
    [Thu Jul 14 23:49:20 2016] [error] (70007)The timeout specified has expired: ajp_ilink_receive() can't receive header
    [Thu Jul 14 23:49:20 2016] [error] ajp_read_header: ajp_ilink_receive failed
    [Thu Jul 14 23:49:20 2016] [error] (70007)The timeout specified has expired: proxy: read response failed from (null) (localhost)
    [Thu Jul 14 23:49:20 2016] [error] (70007)The timeout specified has expired: ajp_ilink_receive() can't receive header
    [Thu Jul 14 23:49:20 2016] [error] ajp_read_header: ajp_ilink_receive failed
    [Thu Jul 14 23:49:20 2016] [error] (70007)The timeout specified has expired: proxy: read response failed from (null) (localhost)

Clearing Logs#

The "clear-logs" feature can be used to clear all log files with the extension .log, including system logs. Clear-logs can be helpful during troubleshooting, as well as research and development. We discourage its use in production systems if the logs are not backed-up. More features are planned. Please consider this as work in progress.

service gluu-server clear-logs
