oxd 4.4 Documentation#

Attention

Questions and feedback on oxd 4.4 can be directed to Gluu support. View known issues.

Introduction#

oxd exposes simple, static APIs web application developers can use to implement user authentication and authorization against an OAuth 2.0 authorization server like Gluu.

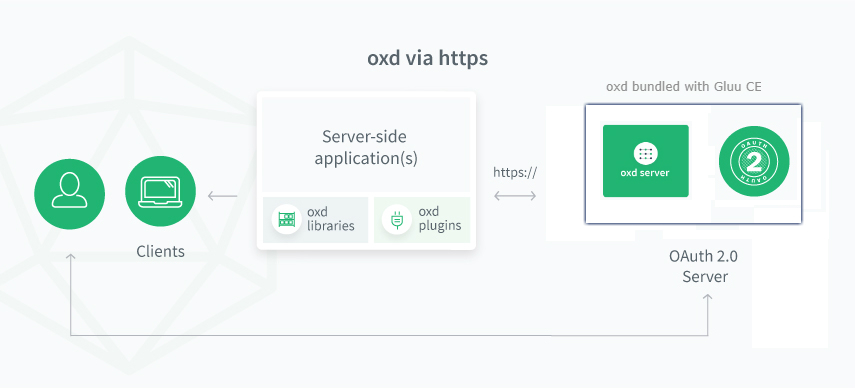

Architecture#

Starting with version 4.1, oxd is offered as one of the several components of the Gluu Server CE. To include oxd in CE instance, just ensure to hit Y when prompted at installation time. The oxd Linux package includes the oxd-server which is a simple REST application. oxd-server is designed to work over the web (via https), making it possible for many apps across many servers to leverage a central oxd service for OAuth 2.0 security.

oxd saves data in its own persistence (RDMBS, redis, etc.) and acts as RP for OP. It is possible that the admin goes to OP directly and change client data there. In that case, oxd will not know about it and can act on outdated data. To prevent this confusion user can configure client during registration so that oxd can automatically synchronize with the client data from OP whenever required. Check Register site for more details.

oxd-https-architecture

Tutorial#

Follow one of our tutorials to learn how oxd works:

Get Started#

To get started:

  1. Install Gluu CE and ensure to hit Y when Install Oxd? is prompted while running setup scripts.

  2. Configure the oxd-server

  3. Restart oxd server using below command.

    Ubuntu 16.04 (xenial)

    Operation Command
    Restart oxd server /etc/init.d/oxd-server restart

    Ubuntu 18.04 (bionic)/Debian 9 (stretch)/CentOS 7/RHEL 7

    Operation Command
    Restart oxd server systemctl restart oxd-server

  4. After Gluu CE server installation is completed wait for about 10 minutes in total for the server to restart and finalize its configuration. After that period, to access Gluu CE server, sign in via a web browser to hostname provided during installation. For quick check whether oxd-server is alive use oxd Health Check endpoint https://$HOSTNAME:8443/health-check. This should return {"status":"running"} ensuring the successful installation of oxd.

Call the oxd API to implement authentication and authorization against an external Authorization Server.

API#

oxd implements the OpenID Connect and UMA 2.0 profiles of OAuth 2.0.

Attention

By default oxd allows only localhost to access its apis. To make request from another server or VM add its ip-address to bind_ip_addresses array in oxd-server.yml. Check bind_ip_addresses in configurations for details.

Before using oxd API you will need to obtain an access token to secure the interaction with oxd-server. You can follow the two steps below.

  • Register site (returns client_id and client_secret. Make sure the uma_protection scope is present in the request and grant_type has client_credentials value. If add_client_credentials_grant_type_automatically_during_client_registration field in /opt/oxd-server/conf/oxd-server.yml is set to true then client_credentials grant type will be automatically added to clients registered using oxd server.)
  • Get client token (pass client_id and client_secret to obtain access_token. Note if grant_type does not have client_credentials value you will get error to check AS logs.)

Pass the obtained access token in Authorization: Bearer <access_token> header in all future calls to the oxd-server.

oxd API References

OpenID Connect Authentication#

OpenID Connect is a simple identity layer on top of OAuth 2.0.

Technically OpenID Connect is not an authentication protocol--it enables a person to authorize the release of personal information from an "identity provider" to a separate application. In the process of authorizing the release of information, the person is authenticated (if no previous session exists).

Authentication Flow#

oxd supports the OpenID Connect Hybrid Flow and Authorization Code Flow for authentication.

Learn more about authentication flows in the OpenID Connect spec.

oxd Authorization Code Flow#

You can think of the Authorization Code Flow as a three-step process:

UMA 2 Authorization#

UMA 2 is a profile of OAuth 2.0 that defines RESTful, JSON-based, standardized flows and constructs for coordinating the protection of APIs and web resources.

Using oxd, your application can delegate access management decisions, like who can access which resources, from what devices, to a central UMA Authorization Server (AS) like the Gluu AS.

Native Libraries#

oxd APIs are swaggerized! Use the Swagger Code Generator to generate native libraries for your programming language of choice.

For more information about generating native clients, check our FAQ.

Compatibility#

oxd 4.4 has been tested against the following OAuth 2.0 Authorization Servers:

OpenID Providers (OP)#

UMA Authorization Servers (AS)#

Source code#

The oxd source code is available on GitHub.

License#

oxd 4.4 is available under the AGPL open source license.

Support#

Gluu offers support for oxd on the Gluu Support Portal. In fact, we use oxd and a Gluu Server to provide single sign-on across our oxd portal and support app!

For guaranteed response times, private support, and more, Gluu offers VIP support.
