Cache Provider Configuration#
Overview#
This page explains the Cache Provider configuration that can be accessed by navigating to Configuration > JSON Configuration > Cache Provider Configuration.

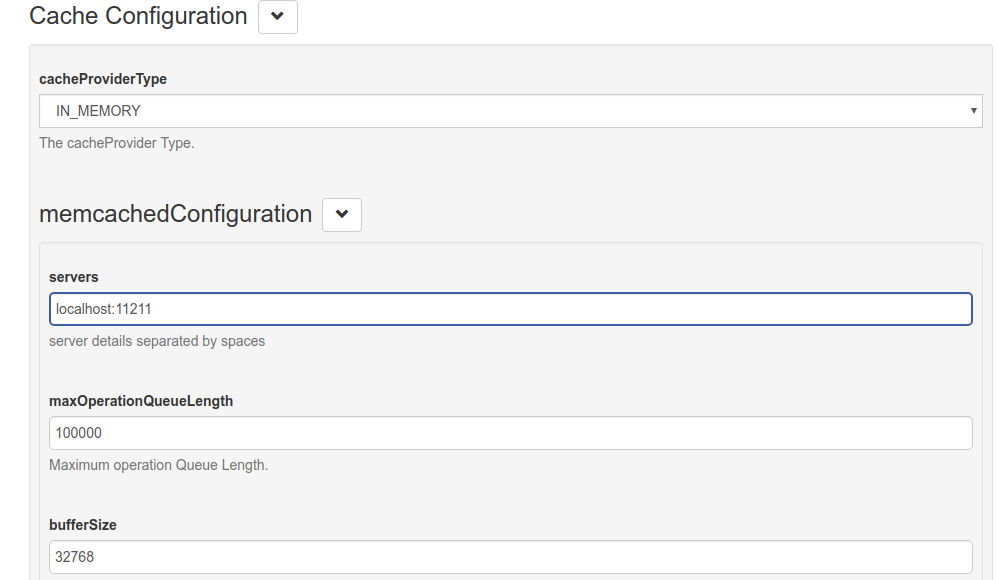

The following cache providers are now supported and can be selected via the cacheProviderType combo box field (see screenshot below):
In Memory - recommended for small deployments only
Memcached - recommended for single cache server deployment
Redis - recommended for cluster deployments
Native Persistence - recommended to avoid additional components installation. All cache entries are saved in persistence layers.
Cache Provider Properties#
The following tables include the name and description of each configurable oxAuth property:
Cache Configuration#
| Name | Description |
|---|---|
| cacheProviderType | The cache provider type |
Memcached Configuration#
| Name | Description |
|---|---|
| servers | Server details separated by spaces (e.g. `server1:8080 server2:8081) |
| maxOperationQueueLength | Maximum number of operations that can be queued |
| bufferSize | Buffer size in bytes |
| defaultPutExpiration | Expiration timeout value in seconds |
| MemcachedConnectionFactoryType | Is the Connection Factory in memory or memcached |
In-Memory Configuration#
| Name | Description |
|---|---|
| defaultPutExpiration | defaultPutExpiration timeout value in seconds |
Redis Configuration#
| Name | Description |
|---|---|
| redisProviderType | Type of connection: standalone, clustered, or sharded |
| Servers | Server details separated by commas (e.g. 'server1:8080,server2:8081') |
| password | Redis password |
| defaultPutExpiration | Default expiration time for the object put into cache in seconds |
| useSSL | Enable SSL communication between Gluu Server and Redis cache |
| sslTrustStoreFilePath | Directory Path to Trust Store |
Native Persistence Configuration#
| Name | Description |
|---|---|
| defaultPutExpiration | Default expiration time for the object put into cache in seconds |
