Interception Scripts#

Overview#

Interception scripts allow you to implement custom business logic without having to fork the code. Each type of interception script is described by an interface (i.e. which methods are required). These scripts give you quite a bit of flexibility to do things that are specific to your organizational requirements in a way that is upgrade-proof.

One of the most most commonly used interception scripts is for person authentication. These scripts enable you to implement a complex multi-step authentication workflow. You can call external API's, or adapt the number of steps based on the risk of the authentication event. For example, if you call a fraud detection API in step one that indicates unacceptable risk, you could add a second step (i.e. present another page that asks for a stronger authentication credential).

In addition to person authentication, many interception scripts are available. Forking the code makes your instance hard to upgrade. If you need to fork the code to accomplish something, you should open a support ticket and suggest an interception script which would help you avoid the fork.

The web interface for Custom Scripts can be accessed by navigating to Configuration > Manage Custom Scripts.

Jython#

Interception scripts are written in Jython. An interpreted language was chosen because it's easier for system administrators to understand and modify. Java can be a black box for administrators--scripts help make the business logic more visible, which aids in troubleshooting.

Jython enables developers to import either Java or Python classes. So if you really hate writing Python, while the syntax of the script requires Python, you can write most of the functionality in Java, keeping the Python code to a minimum.

If you import Python classes, they must be "pure python." For example, you couldn't import a class that wraps C libraries.

Methods#

There are three methods that inherit a base interface:

Inherited Methods Method description
def init(self, configurationAttributes) This method is only called once during the script initialization. It can be used for global script initialization, initiate objects etc
def destroy(self, configurationAttributes) This method is called once to destroy events. It can be used to free resource and objects created in the init() method
def getApiVersion(self) The getApiVersion method allows API changes in order to do transparent migration from an old script to a new API. Currently all scripts should return 1

The configurationAttributes parameter is java.util.Map<String, SimpleCustomProperty> with properties specified in oxConfigurationProperty attributes.

The script manager only loads enabled scripts. Hence, after enabling or disabling a script, the script manager should trigger an event to either load or destroy a script, respectively. All scripts are stored in LDAP in the ou=scripts,o=<org_inum>,o=gluu branch.

Here is a sample entry:

    dn: inum=@!1111!031C.4A65,ou=scripts,o=@!1111,o=gluu
    objectClass: oxCustomScript
    objectClass: top
    description: <custom_script_description>
    displayName: <display_name>
    gluuStatus: true
    inum: @!1111!031C.4A65
    oxLevel: <priority>
    oxModuleProperty: {"value1":"module_property_name","value2":"module_property_value","description":""}
    oxConfigurationProperty: {"value1":"configuration_property_name","value2":"configuration_property_value","description":""}
    oxRevision: <revision>
    oxScript: <custom_script>
    oxScriptType: <script_type>
    programmingLanguage: python

The script manager reloads scripts automatically without needing to restart the application once oxRevision is increased.

Script Naming#

New custom scripts should be given a descriptive displayName, as that is how they are listed in oxTrust. The displayName is limited to 60 characters.

Logs#

The log files regarding interception scripts are stored in the oxauth.log file. The logs are separated according to the module they affect. The oxAuth custom script logs are stored in oxauth_script.log and the oxTrust custom script logs are stored in the oxtrust_script.log. Please refer to these log files to troubleshoot errors in the interception scripts or following the workflow of the script.

Note

A print statement may not work on some environments if the PYTHON_HOME environment variable is not set. Make sure it points to a valid python installation.

More details about Logs can be found in the Log Management portion of the docs.

Person Authentication#

An authentication script enables you to customize the user experience for authentication. For example, you can write a script that enables a two-factor authentication mechanism like Duo Security or FIDO U2F tokens. Or you could call external security services like fraud detection or DDoS protection.

The authentication interception script extends the base script type with the init, destroy and getApiVersion methods but also adds the following methods:

Method isValidAuthenticationMethod(self, usageType, configurationAttributes)
Description This method is used to check if the authentication method is in a valid state. For example we can check there if a 3rd party mechanism is available to authenticate users. As a result it should either return True or False
Method Parameter usageType is org.xdi.model.AuthenticationScriptUsageType
configurationAttributes is java.util.Map<String, SimpleCustomProperty>
Method def getAlternativeAuthenticationMethod(self, usageType, configurationAttributes)
Description This method is called only if the current authentication method is in an invalid state. Hence authenticator calls it only if isValidAuthenticationMethod returns False. As a result it should return the reserved authentication method name
Method Parameter uageType is org.xdi.model.AuthenticationScriptUsageType
configurationAttributes is java.util.Map<String, SimpleCustomProperty>
Method def authenticate(self, configurationAttributes, requestParameters, step)
Description This method is the key method within the person authentication script. It checks if the user has passed the specified step or not. As a result it should either return True or False
Method Parameter requestParameters is java.util.Map<String, String[]>
step is java integer
configurationAttributes is java.util.Map<String, SimpleCustomProperty>
Method def prepareForStep(self, configurationAttributes, requestParameters, step)
Description This method can be used to prepare variables needed to render the login page and store them in an according event context. As a result it should either return True or False
Method Parameter requestParameters is java.util.Map<String, String[]>
step is a java integer
configurationAttributes is java.util.Map<String, SimpleCustomProperty>
Method def getCountAuthenticationSteps(self, configurationAttributes)
Description This method should return an integer value with the number of steps in the authentication workflow
Method Parameter configurationAttributes is java.util.Map<String, SimpleCustomProperty>
Method def getExtraParametersForStep(self, configurationAttributes, step)
Description This method provides a way to notify the authenticator that it should store specified event context parameters event in the oxAuth session. It is needed in a few cases, for example when an authentication script redirects the user to a 3rd party authentication system and expects the workflow to resume after that. As a result it should return a java array of strings
Method Parameter configurationAttributes is java.util.Map<String, SimpleCustomProperty>
step is a java integer
Method def getPageForStep(self, configurationAttributes, step)
Description This method allows the admin to render a required page for a specified authentication step. It should return a string value with a path to an XHTML page. If the return value is empty or null, the authenticator should render the default log in page /login.xhtml
Method Parameter configurationAttributes is java.util.Map<String, SimpleCustomProperty>
step is a java integer
Method def logout(self, configurationAttributes, requestParameters)
Description This method is not mandatory. It can be used in cases when you need to execute specific logout logic within the authentication script when oxAuth receives an end session request. Also, it allows oxAuth to stop processing the end session request workflow if it returns False. As a result it should either return True or False
Method Parameters configurationAttributes is java.util.Map<String, SimpleCustomProperty>
requestParameters is java.util.Map<String, String[]>

Every deployment of the Gluu Server includes a number of pre-written authentication scripts out-of-the-box. Learn more in the authentication guide.

For a complete list of pre-written, open source authentication scripts, view our server integrations.

OAuth 2.0 allows providers to prompt users for consent before releasing their personal information to a client (application). The standard consent process is binary: approve or deny. Using the consent gathering interception script, the consent flow can be customized to meet unique business requirements, for instance to support payment authorization, where you need to present transactional information, or where you need to step-up authentication to add security.

Consent Gathering can be enabled via oxTrust UI as shown below

consent

Users will be prompted for consent as below.

consent1

consent2

Update User#

oxTrust allows an admin to add and modify users which belong to groups. In order to simplify this process and apply repeating actions, oxTrust supports an Update User script. In this script it is possible to modify a person entry before it is stored in LDAP.

This script type adds only one method to the base script type:

Method def updateUser(self, user, persisted, configurationAttributes)
Description This method updates the user
Method Parameter user is org.gluu.oxtrust.model.GluuCustomPerson
persisted is a boolean value to specify the operation type: add/modify
configurationAttributes is java.util.Map<String, SimpleCustomProperty>

This script can be used in an oxTrust application only.

User Registration#

oxTrust allows users to perform self-registration. In order to control/validate user registrations there is the user registration script type.

This script type adds three methods to the base script type:

Methods def initRegistration(self, user, requestParameters, configurationAttributes)
def preRegistration(self, user, requestParameters, configurationAttributes)
def postRegistration(self, user, requestParameters, configurationAttributes)
Description This method enables/disables user account based on the custom property's value
Method Parameters user is org.gluu.oxtrust.model.GluuCustomPerson
requestParameters is java.util.Map<String, String[]>
configurationAttributes is java.util.Map<String, SimpleCustomProperty>
Custom Property enable_user--> defaults to false
Description It controls whether or not this user account will be ready for loggin into the Gluu Server CE instance

The methods are executed in the following order:

Order Method Expected Return
First initRegistration() True/False
Second preRegistration() True/False
Third postRegistration() True/False

First oxTrust executes the initRegistration method to do an initial user entry update. The preRegistration method is called before storing the user entry in LDAP. Hence in this script it is possible to validate the user entry. The postRegistration method is called after successfully storing the user entry in LDAP. In this method, for example, the script can send an e-mail or send notifications to other organization systems about the new user entry.

Client Registration#

oxAuth implements the OpenID Connect dynamic client registration specification. All new clients have the same default access scopes and attributes except password and client ID. The Client Registration script allows an admin to modify this limitation. In this script it is possible to get a registration request, analyze it, and apply customizations to registered clients. For example, a script can give access to specified scopes if redirect_uri belongs to a specified service or domain.

This script type adds only one method to the base script type:

Method def updateClient(self, registerRequest, client, configurationAttributes)
Method Parameter registerRequest is org.xdi.oxauth.client.RegisterRequest
client is org.xdi.oxauth.model.registration.Client
configurationAttributes is java.util.Map<String, SimpleCustomProperty>

This script can be used in an oxAuth application only.

Dynamic Scopes#

The dynamic scope custom script allows to generate list of claims (and their values) on the fly, depending on cirtumstances like id of client requesting it, logged user's session parameters, values of other user's attributes, results of some caclucations implementing specific buisness logic and/or requests to remote APIs or databases. Claims are then returned the usual way in a response to a call to the userinfo endpoint.

Two parameters are passed to the script:

In order to configure a dynamic scope next steps are required:

  • Dynamic scope custom script must be configured and enabled at "Manage custom scripts" page, "Dynamic scopes" tab
  • A scope has to be defined at the "OpenID Connect -> Scopes" page
  • Scope's type must be set to "Dynamic"
  • Corresponding dynamic script must be linked to that scope (Add dynamic script button)
  • The scope must be added to the client which will be using it at the "OpenID Connect -> Clients" page (using the "Add Scope" button), and the scope must be included by the client in "scope=" url query parameter

More detailed explanation about adding scopes can be found under Openid scopes

ID Generator#

By default oxAuth/oxTrust uses an internal method to generate unique identifiers for new person/client, etc. entries. In most cases the format of the ID is:

'!' + idType.getInum() + '!' + four_random_HEX_characters + '.' + four_random_HEX_characters.

The ID generation script enables an admin to implement custom ID generation rules.

This script type adds only one method to the base script type:

Method def generateId(self, appId, idType, idPrefix, configurationAttributes)
Method Parameter appId is application ID
idType is ID Type
idPrefix is ID Prefix
user is org.gluu.oxtrust.model.GluuCustomPerson
configurationAttributes is java.util.Map<String, SimpleCustomProperty>

This script can be used in an oxTrust application only.

Cache Refresh#

In order to integrate your Gluu instance with backend LDAP servers handling authentication in your existing network environment, oxTrust provides a mechanism called Cache Refresh to copy user data to the Gluu Server's local LDAP server. During this process it is possible to specify key attribute(s) and specify attribute name transformations. There are also cases when it can be used to overwrite attribute values or to add new attributes based on other attribute values.

This script type adds only one method to the base script type:

Method def updateUser(self, user, configurationAttributes)
Method Parameter user is org.gluu.oxtrust.model.GluuCustomPerson
configurationAttributes is java.util.Map<String, SimpleCustomProperty>

This script can be used in an oxTrust application only.

UMA 2 RPT Authorization Policies#

This is a special script for UMA. It allows an admin to protect UMA scopes with policies. It is possible to add more than one UMA policy to an UMA scope. On requesting access to a specified resource, the application should call specified UMA policies in order to grant or deny access.

This script type adds only one method to the base script type:

Method def authorize(self, authorizationContext, configurationAttributes)
Method Parameter authorizationContext is org.xdi.oxauth.service.uma.authorization.AuthorizationContext
configurationAttributes is java.util.Map<String, SimpleCustomProperty>

This script can be used in an oxAuth application only.

UMA 2 Claims-Gathering#

This is a special script for UMA 2. It allows an admin to code logic for gathering additional claims (required by UMA RPT Authorization Policy).

This script can be used in an oxAuth application only.

Application Session Management#

This script allows an admin to notify 3rd party systems about requests to end an OAuth session. This method is triggered by an oxAuth call to the end_session endpoint. It's possible to add multiple scripts with this type. The application should call all of them according to the level.

This script type adds only one method to the base script type:

Method def endSession(self, httpRequest, authorizationGrant, configurationAttributes)
Method Parameter httpRequest is javax.servlet.http.HttpServletRequest
authorizationGrant is org.xdi.oxauth.model.common.AuthorizationGrant
configurationAttributes is java.util.Map<String, SimpleCustomProperty>

This script can be used in an oxAuth application only.

SCIM#

SCIM script allows you to execute custom logic when certain SCIM API operations are invoked. Particularly for create, update, and delete users and groups, custom code can be called just before and after data is persisted to LDAP.

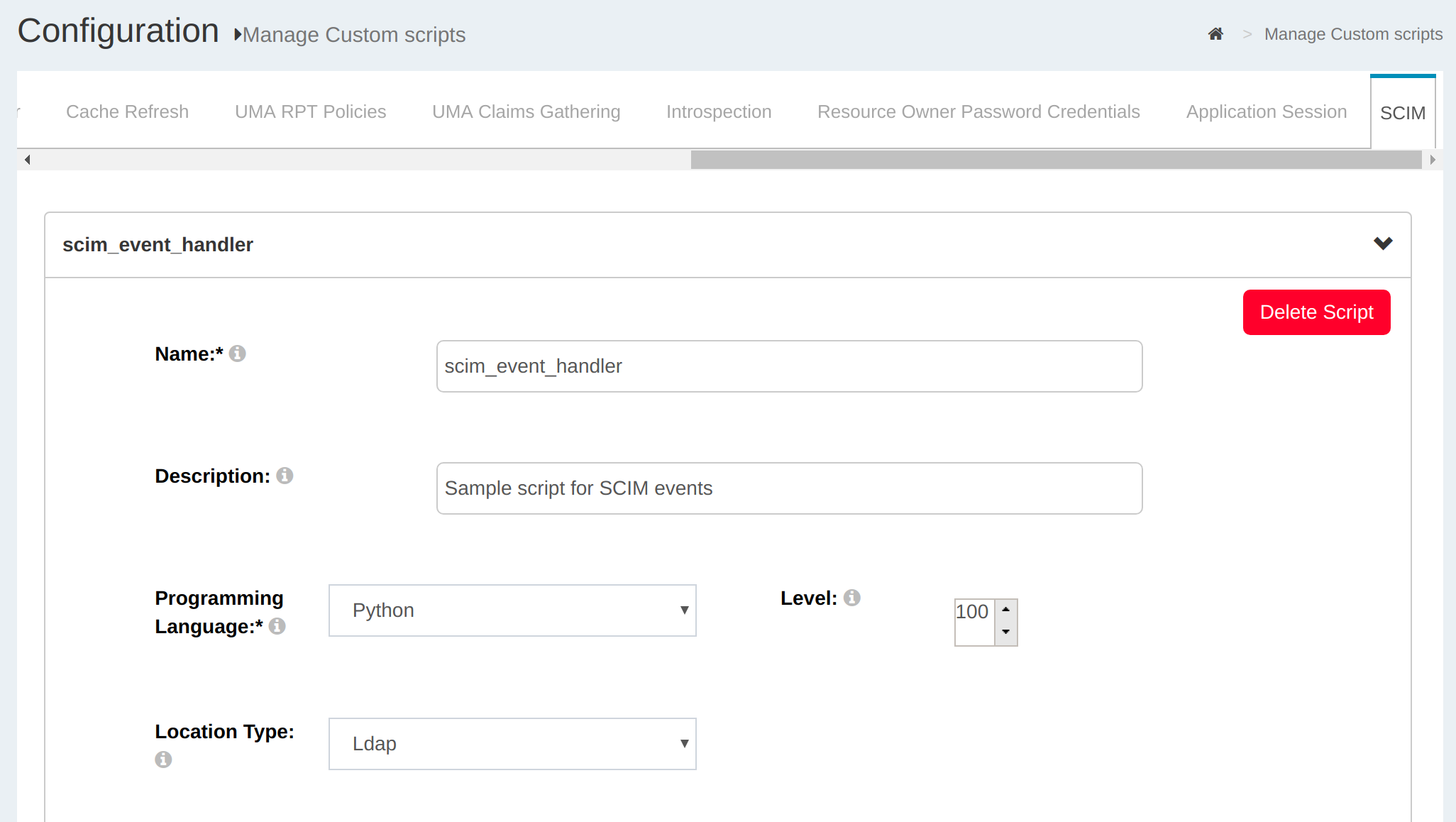

To enable this feature, SCIM script needs to be enabled from the SCIM tab:

  1. Click on Manage Custom Scripts > SCIM

  2. Click on Enabled check box

  3. Click on update at the bottom of the page

SCIM

More on SCIM can be found here

Introspection#

Introspection scripts allows to modify response of Introspection Endpoint (spec).

The introspection interception script extends the base script type with the init, destroy and getApiVersion methods but also adds the following method(s):

Method def modifyResponse(self, responseAsJsonObject, context)
Method Parameter responseAsJsonObject is org.codehaus.jettison.json.JSONObject
context is org.xdi.oxauth.service.external.context.ExternalIntrospectionContext

Snippet

    # Returns boolean, true - apply introspection method, false - ignore it.
    # This method is called after introspection response is ready. This method can modify introspection response.
    # Note :
    # responseAsJsonObject - is org.codehaus.jettison.json.JSONObject, you can use any method to manipulate json
    # context is reference of org.xdi.oxauth.service.external.context.ExternalIntrospectionContext (in https://github.com/GluuFederation/oxauth project, )
    def modifyResponse(self, responseAsJsonObject, context):
        responseAsJsonObject.put("key_from_script", "value_from_script")
        return True

Full version of introspection script example can be found here.

Resource Owner Password Credentials#

Resource Owner Password Credentials script allows to modify behavior of Resource Owner Password Credentials Granth.

Script is invoked after normal authentication and can either leave current result or change it - authenticate if not authenticated - it should return True and optionally set user (via context.setUser(user))

Script extends the base script type with the init, destroy and getApiVersion methods but also adds the following method(s):

Method def authenticate(self, context)
Method Parameter context is org.xdi.oxauth.service.external.context.ExternalResourceOwnerPasswordCredentialsContext

Snippet

    # Returns boolean, true - authenticate user, false - ignore script and do not authenticate user.
    # This method is called after normal ROPC authentication. This method can cancel normal authentication if it returns false and sets `context.setUser(null)`.
    # Note :
    # context is reference of org.xdi.oxauth.service.external.context.ExternalResourceOwnerPasswordCredentialsContext#ExternalResourceOwnerPasswordCredentialsContext (in https://github.com/GluuFederation/oxauth project, )
    def authenticate(self, context):
        if (context.getHttpRequest().getParameterValues("device_id")[0] == "device_id_1"):
            return True
        return False

Full version of script example can be found here.
