FIDO U2F#

Overview#

FIDO Universal 2nd Factor (U2F) is an open authentication standard that strengthens and simplifies two-factor authentication using specialized USB or NFC devices.

This document explains how to use the Gluu Server's included U2F interception script to implement a two-step, two-factor authentication (2FA) process with username / password as the first step, and any U2F device as the second step.

Note

For more background on U2F, including a discussion of its security advantages, visit the Yubico blog.

Prerequisites#

U2F Devices#

Some well known U2F devices and manufacturers include:

Purchase U2F devices on Amazon. Or, check FIDO's certified products for a comprehensive list of U2F devices (sort by Specification == U2F).

Properties#

The script has the following properties

Property Description Example
u2f_application_id Unique Identifer, normally url of IDP https://idp.mycompany.com
u2f_server_uri URL of the oxAuth U2F server https://idp.mycompany.com

Enable U2F#

Follow the steps below to enable U2F authentication:

  1. Navigate to Configuration > Manage Custom Scripts.

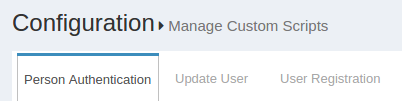

  2. Click on the Person Authentication tab
    person-auth

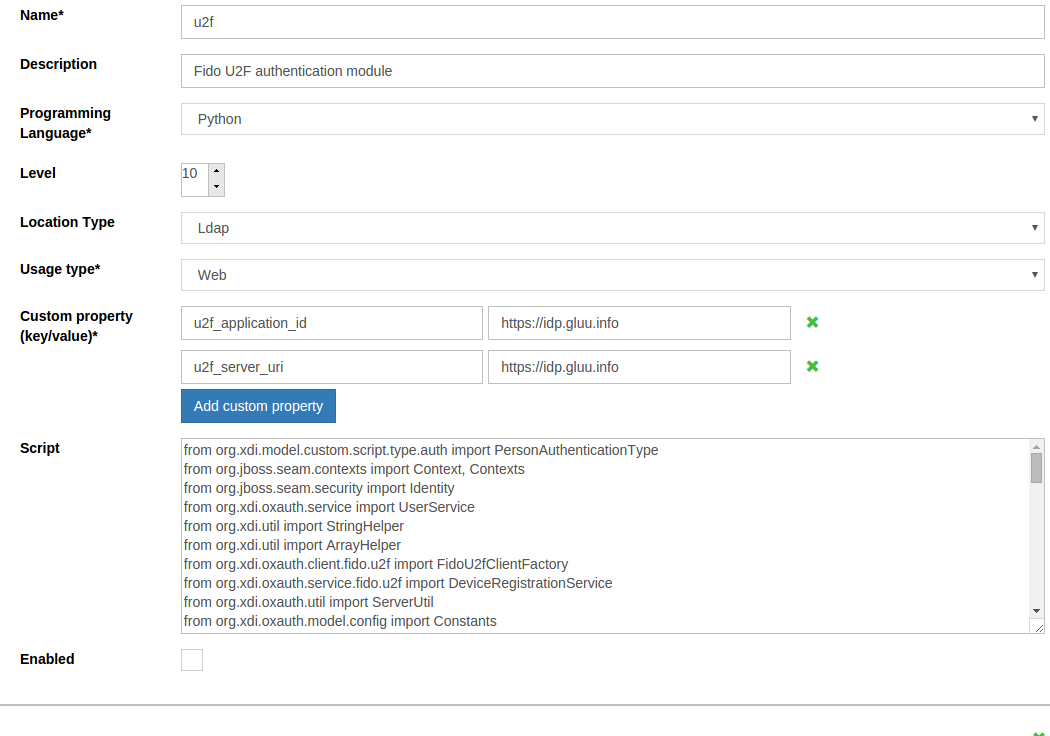

  3. Find the U2F script
    u2f-script

  4. Enable the script by checking the box
    enable

  5. Scroll to the bottom of the page and click Update

Now U2F is an available authentication mechanism for your Gluu Server. This means that, using OpenID Connect acr_values, applications can now request U2F authentication for users.

Note

To make sure U2F has been enabled successfully, you can check your Gluu Server's OpenID Connect configuration by navigating to the following URL: https://<hostname>/.well-known/openid-configuration. Find "acr_values_supported": and you should see "u2f".

Make U2F the Default#

If U2F should be the default authentication mechanism, follow these instructions:

  1. Navigate to Configuration > Manage Authentication.

  2. Select the Default Authentication Method tab.

  3. In the Default Authentication Method window you will see two options: Default acr and oxTrust acr.

u2f

  • oxTrust acr sets the authentication mechanism for accessing the oxTrust dashboard GUI (only managers should have acccess to oxTrust).

  • Default acr sets the default authentication mechanism for accessing all applications that leverage your Gluu Server for authentication (unless otherwise specified).

If U2F should be the default authentication mechanism for all access, change both fields to U2F.

Note

If U2F is set as a default authentication mechanism users will not be able to access the protected resource(s) while using a mobile device or a browser that does not support U2F (e.g. Internet Explorer).

U2F Login Page#

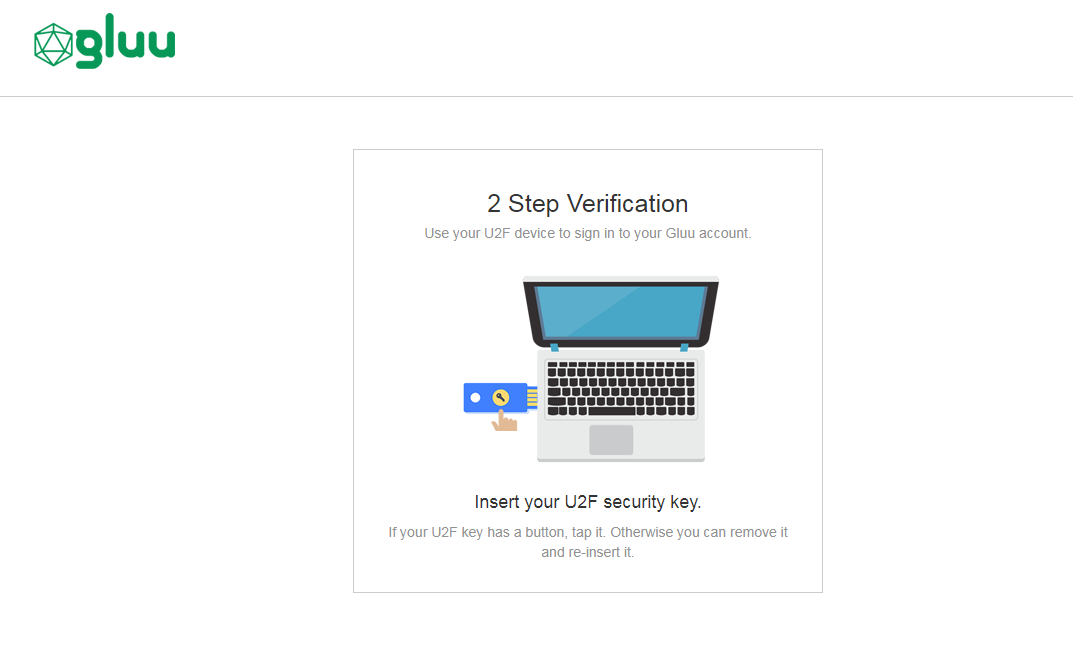

Below is an illustration of the Gluu Server's default U2F login page:

u2f

The design is being rendered from the U2F xhtml page. To customize the look and feel of this page, follow the customization guide.

Using U2F Tokens#

Credential Enrollment#

U2F device enrollment happens during the first authentication attempt.

Subsequent Authentications#

All subsequent U2F authentications for that user account will require the enrolled U2F key.

U2F Credential Management#

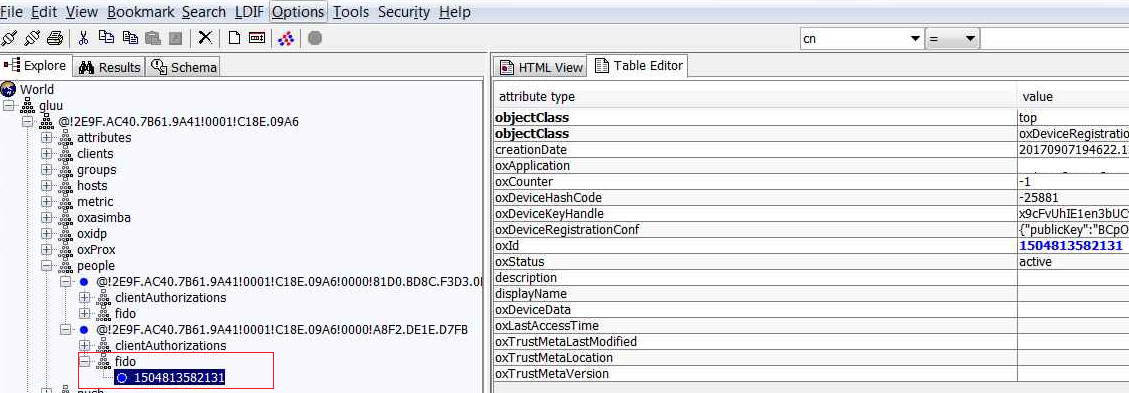

A users FIDO U2F devices can be removed by a Gluu administrator either via the oxTrust UI in Users > Manage People, or in LDAP under the user entry as shown in the below screenshot.

fidoldap

U2F Discovery Endpoint#

A discovery document for U2F is published by the Gluu Server at: https://<hostname>/.well-known/fido-u2f-configuration This document specifies the URL of the registration and authentication endpoints.

U2F SCIM APIs#

For a discussion of how to manage FIDO devices using the SCIM protocol, see the SCIM documentation.

U2F Linux#

From your terminal run below commands and reboot your computer.

  • sudo curl https://hypersecu.com/downloads/files/configurations/70-u2f.rules > /etc/udev/rules.d/70-u2f.rules
  • chmod +x /etc/udev/rules.d/70-u2f.rules
