Architecture#

Attention

The official support end-of-life (EOL) date for Gluu Server 2.4.4 is December 31, 2018. Starting January 1, 2019, no further security updates or bug-fixes will be provided for Gluu Server 2.X. We strongly recommend upgrading to the newest version.

Following is a list of the technical components that comprise the Gluu Server.

J2EE Servlet container#

Most of the components of the Gluu Server are written in Java, and deployed as a web application in a J2EE servlet container. Java was chosen because there is a wide array of high quality libraries, convenient container services, and tools for managing high performance applications at run-time. In order to run the Gluu Server, you don't have to be a Java expert. But it does help to have some knowledge of how Java applications are deployed and managed in tomcat, or a similar servlet container.

Apache HTTP front end web server#

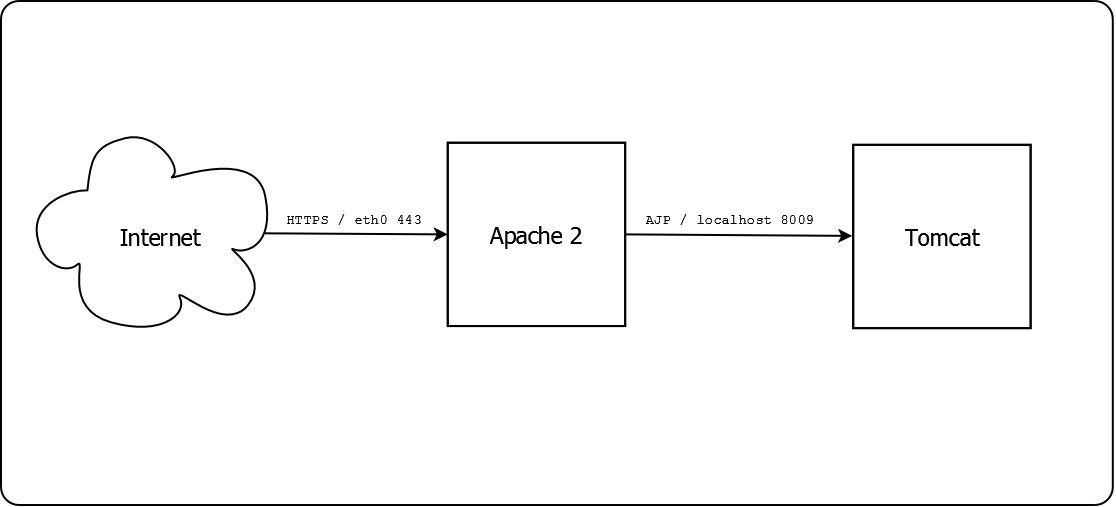

Although there are pros and cons, we think its best to use the Apache HTTP server as the Internet facing Web server. There are a number of Apache HTTP denial of service plugins. It is easier to handle re-directs for things like discovery. And its convenient to have a non-J2EE way to publish static content. Gluu Web Communication

LDAP for Persistence#

LDAP was chosen for persistence for a number of reasons: (1) we understood how to scale an LDAP directory service horizontally to accommodate a data set of any size; (2) LDAP servers offer cost-effective and reliable replication services; (3) as LDAP is a standard, the Gluu server would not be locked into the persistence solution of one vendor; (4) LDAP had built-in support for SAML and OAuth2 components. In the future the OX project may develop additional persistence backends. But this is not likely for the near-term.

Web container plugins#

Today, Web access management tools like CA Siteminder predominantly use the web agent approach. Many large organizations have hundreds or thousands of "web agents" running on Apache and IIS.

Web agents are a great approach. Programmers don't have to know much about the protocols. System administrators can configure the web server to use the central authorization server so we don't have to rely on the programmers to get security right. The programmers can obtain the user session information in the environment variables. In OAuth2 information is serialized using JSON. For example, the entire id_token JWT is sent in one environment variable.

If developers want even more control, they can use the Gluu Server's API's directly: SAML, OpenID Connect, or UMA.
