Client Credentials Grant#

Attention

The official support end-of-life (EOL) date for Gluu Server 2.4.4 is December 31, 2018. Starting January 1, 2019, no further security updates or bug-fixes will be provided for Gluu Server 2.X. We strongly recommend upgrading to the newest version.

The Client Credentials Grant allows resource owner to use password credentials (i.e. username and password) as an authorization grant to obtain an access token. The credentials should only be used when there is a high degree of trust between the resource owner and the client (e.g. its device operating system or a highly privileged application), and when other authorization grant types are not available (such as an authorization code).

Even though this grant type requires direct client access to the resource owner credentials, the resource owner credentials are used for a single request and are exchanged for an access token. This grant type can eliminate the need for the client to store the resource owner credentials for future use, by exchanging the credentials with a long-lived access token or refresh token.

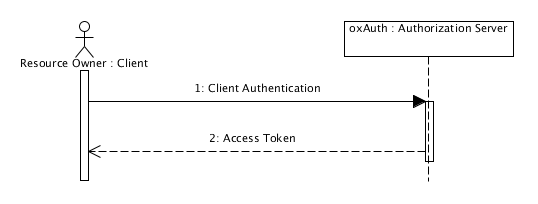

The flow is illustrated below:

flow

The steps of the flow are:

  1. The application requests an access token from the authorization server, authenticating the request with its client credentials.

  2. If the client credentials are successfully authenticated, an access token is returned to the client.

When Should the Client Credentials Flow Be Used?#

The Client Credentials flow should be used when the resources of or any application/service are stored externally in cloud storages such as Google Storage or Amazon S3 which can be accessed using API. In this case the application needs to read and update these resources, but acting on behalf of the app itself rather than any individual user. The application can ask the OAuth authorization server for an access token directly, without the involvement of any end user.

Example Flow#

The following is an example showing the messages between the client and the authorization server, also the example shows code fragments using the oxAuth-Client.jar API to interact with the authorization server.

// Parameters
String tokenUrl = "https://seed.gluu.org/oxauth/seam/resource/restv1/oxauth/token";

// Request
TokenClient tokenClient = new TokenClient(tokenUrl);
TokenResponse response = tokenClient.execClientCredentialsGrant(scope, clientId, clientSecret);

int status response.getStatus(); // 200 if succeed
String accessToken = response.getAccessToken();
TokenType tokenType response.getTokenType(); // bearer

The message sent to the authorization server is:

  • Request
POST /oxauth/seam/resource/restv1/oxauth/token HTTP/1.1
Host: seed.gluu.org
Authorization: Basic QCExMTExITAwMDghRkY4MSEyRDM5OjYyMTNlOWI5LWM0NmQtNDAwOC04YWYxLTAzZjkxOGE4YWRlNA==
Content-Type: application/x-www-form-urlencoded

grant_type=client_credentials&scope=storage

If the client credentials are successfully authenticated, an access token is returned to the client.

  • Response
HTTP/1.1 200
Content-Type: application/json
Cache-Control: no-store, private
Pragma: no-cache

{"access_token":"c769d7ff-c476-42ab-b531-fe2f60b2f5cc","token_type":"bearer","expires_in":3600}

Resource Owner Password Credentials Grant#

The resource owner password credentials (i.e. username and password) can be used directly as an authorization grant to obtain an access token. The credentials should only be used when there is a high degree of trust between the resource owner and the client (e.g. its device operating system or a highly privileged application), and when other authorization grant types are not available (such as an authorization code).

Even though this grant type requires direct client access to the resource owner credentials, the resource owner credentials are used for a single request and are exchanged for an access token. This grant type can eliminate the need for the client to store the resource owner credentials for future use, by exchanging the credentials with a long-lived access token or refresh token.

The flow is illustrated below:

flow

The steps of the flow are:

  1. User presents their credentials to the application in addition to a username and password.

  2. If the client credentials are successfully authenticated, an access token is returned to the client

When Should the Resource Owner Password Flow Be Used?#

This flow should be used sparingly because the resource owner’s password is exposed to the application. It is recommended only for first-party “official” applications released by the API provider, and not opened up to wider third-party developer communities. If a user is asked to type their password into “official” applications, they may become accustomed to doing so and become vulnerable to phishing attempts by other apps. In order to mitigate this concern, developers and IT administrators should clearly educate their users how they should determine which apps are “official” and which are not.

Security Properties#

There are some security benefits to using this flow against authenticating API calls with a username and password (via HTTP Basic access authentication or similar) although the application has access to the resource owner's password. With Basic authentication, an application needs to have continuous access to the user’s password in order to make API calls. If the user wants to revoke the access of the client, he must change the password and re-enter the password in all the applications that are allowed access to the resource.

However, if the OAuth Resource Owner Password flow is used, the application only needs access to the user’s credentials once: on first use when the credentials are exchanged for an access token. This means there’s no requirement for the app to store these credentials within the application or on the device, and revoking access is easy as well.

User Experience#

The user experience for this flow is identical to typical password-based access requests. The application asks the user for their username and password and the user provides the information. The application then makes either a server-side or client-side request to the API provider’s authorization server, without any user-facing interface changes. If the API provider does not issue a refresh_token and the issued access_token is short-lived, the application will likely store the username and password for future authentication attempts. Unfortunately, this defeats some of the benefit of this flow.

Example Flow#

The following is an example showing the messages between the client and the authorization server, also the example shows code fragments using the oxAuth-Client.jar API to interact with the authorization server.

// Parameters
String tokenUrl = "https://seed.gluu.org/oxauth/seam/resource/restv1/oxauth/token";

// Call the service
TokenClient tokenClient = new TokenClient(tokenUrl);
TokenResponse response = tokenClient.execResourceOwnerPasswordCredentialsGrant(username, password, scope, clientId, clientSecret);

// Handle response
int status = response.getStatus(); // 200 if succeed
String accessToken = response.getAccessToken(); // 26d55e4b-6c61-40ea-9763-3282f5db0f0e
TokenType tokenType = response.getTokenType(); // Enumeration: bearer
String refreshToken = response.getRefreshToken(); // aba91bd9-aa10-4fca-952b-50a9a9afac28
  • Request
POST /oxauth/seam/resource/restv1/oxauth/token HTTP/1.1
Host: seed.gluu.org
Authorization: Basic QCExMTExITAwMDghRkY4MSEyRDM5OjYyMTNlOWI5LWM0NmQtNDAwOC04YWYxLTAzZjkxOGE4YWRlNA==
Content-Type: application/x-www-form-urlencoded

grant_type=password&scope=openid&username=mike&password=secret
  • Response
HTTP/1.1 200
Content-Type: application/json
Cache-Control: no-store, private
Pragma: no-cache

{"access_token":"26d55e4b-6c61-40ea-9763-3282f5db0f0e","token_type":"bearer","expires_in":3599,"refresh_token":"aba91bd9-aa10-4fca-952b-50a9a9afac28","scope":"openid","id_token":"eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJodHRwczpcL1wvc2VlZC5nbHV1Lm9yZyIsInVzZXJfaWQiOiJtaWtlIiwiYXVkIjoiQCExMTExITAwMDghRkY4MSEyRDM5IiwiZXhwIjoxMzM5MTk2ODgxMzAzLCJveEludW0iOiJAITExMTEhMDAwMCFENEU3Iiwib3hWYWxpZGF0aW9uVVJJIjoiaHR0cHM6XC9cL3NlZWQuZ2x1dS5vcmdcL294YXV0aFwvc2VhbVwvcmVzb3VyY2VcL3Jlc3R2MVwvb3hhdXRoXC9jaGVja19zZXNzaW9uIiwib3hPcGVuSURDb25uZWN0VmVyc2lvbiI6Im9wZW5pZGNvbm5lY3QtMS4wIn0.SzWfJsmlz62qTRw1lEJZ8PygY9eRupgmsbXLCQwPVDQ"}

Gluu OAuth2 Access Management#

[GAT][Gluu Access Token] is used for Gluu OAuth2 Access Management.

Overview#

image Centralized Access Management needs a profile enabling a client ot obtain a token from the AS by explicitly specifyting the requested scopes.

Gluu Access Token#

GAT as plain json#

{
    "exp": 1256953732,
    "iat": 1256912345,
    "scopes" : {
       "view", "manage"
    }
}

The [GAT][Gluu Access Token] is issued at a new endpoint which is published at <hostname>/.well-known/uma-configuration

Important: all requests/response to/from/between RP, RS, AS must contain "GAT" HTTP header with "true" value. In this way AS differentiante calls from normal UMA.

AS Respnse for RP#

POST /gat HTTP/1.1
Host: as.example.com
Authorization: Bearer jwfLG53^sad$#f
GAT: true

{
 "scopes": ["view", "manage"]
}

AS Response for RP#

GAT is returned in the rpt key as value.

HTTP/1.1 200 OK
Content-Type: application/json
GAT: true

{
  "rpt": "sbjsbhs(/SSJHBSUSSJHVhjsgvhsgvshgsv"
}

RP Request Resource with GAT#

GET /users/alice/album/photo.jpg HTTP/1.1
Authorization: Bearer vF9dft4qmT
Host: photoz.example.com
GAT: true

Discovery#

   ...
   "gat_endpoint":"https://<host>/<relative path>/gat",
   ...
