SAML SSO to Salesforce.com#

By default Salesforce suggest deployers to implement IDP-initiated SSO. The initialization of IDP-initiated SSO is little bit complex as it requires a big hostname which includes IDP's SSO link as well as SP's login uri. So we prefer SP-initiated SSO and here in this documentation we are presenting a very simple SP-initiated SSO steps with Salesforce and Gluu Server. Still, you can go for IDP-initiated SSO if you prefer. Further documentation is available at the Salesforce.com site.

Prepare Salesforce.com#

  • Log into Salesforce.com with your administrative account.
  • Click on Setup in the right upper corner of the page.
  • You need to add a custom domain name for your Salesforce.com site if you do not have any yet.

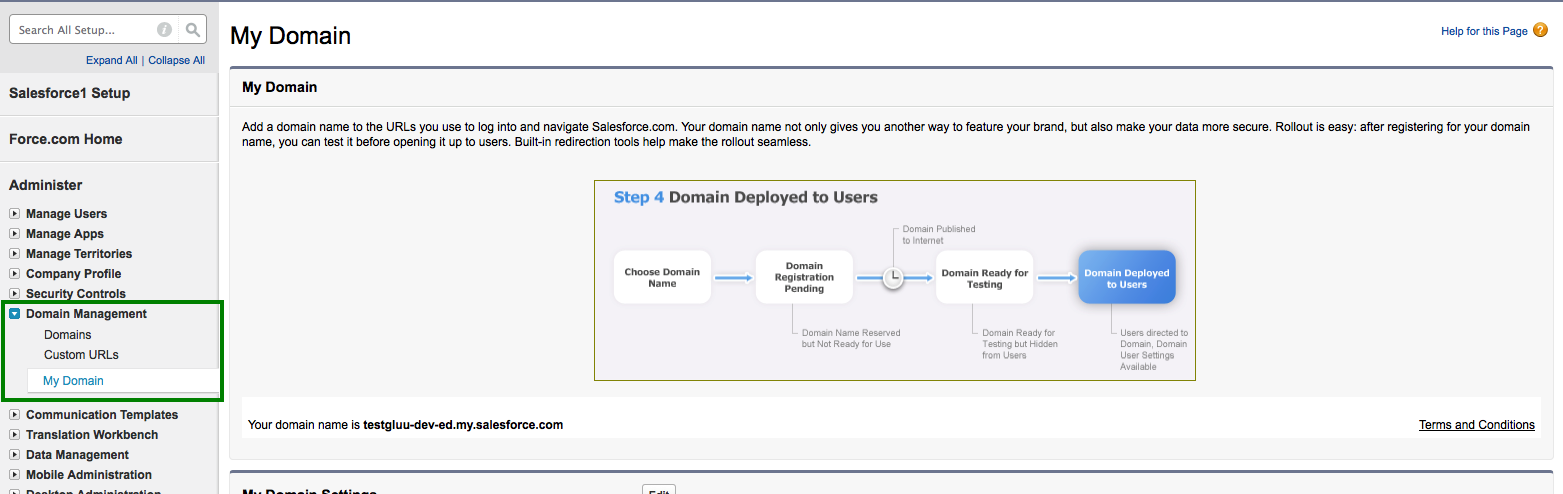

  • Go to Domain Management > My Domain
  • Add your custom domain
  • Wait for some time. Salesforce.com will register this domain name for you. As an example we use testgluu-dev-ed.my.salesforce.com here.


  • Register your Gluu Server information in Salesforce.com

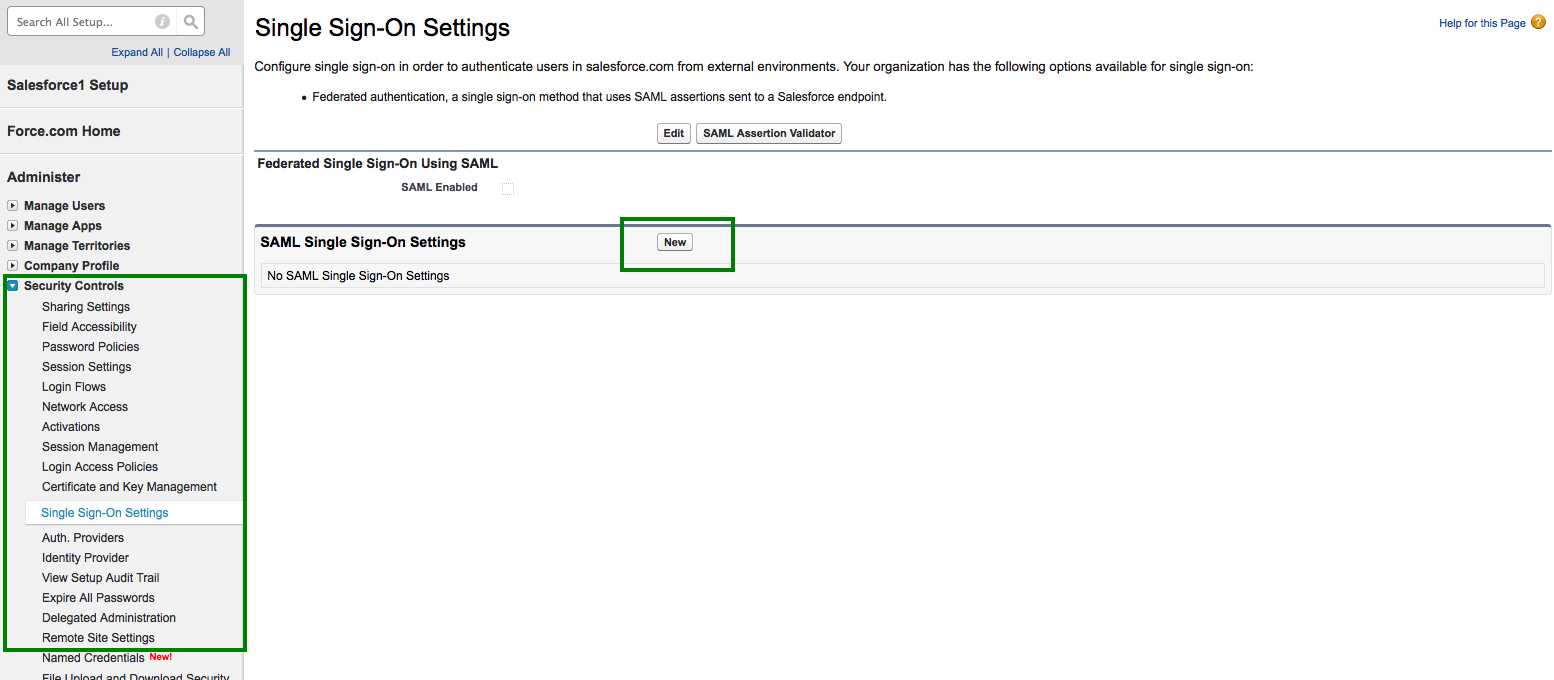

  • Go to Security Controls > Single Sign On Settings
  • Click New


  • Now you need to add the information of your Gluu Server here

    • Name: Anything, whichever is easier for you to recognize this setup, i.e. Gluu Server
    • API Name: Gluu Server.
    • Issuer: EntityID of your Gluu Server, i.e. https://test.gluu.org/idp/shibboleth
    • EntityID: Your Salesforce.com custom domain name as chosen above, i.e. https://testgluu-dev-ed.my.salesforce.com
    • Identity Provider Certificate: Grab your Gluu Server's SAML certificate. SAML certificate can be grabbed from your Gluu Sever's metadata. Save the certificate and upload it.
    • Request Signing Certificate: Default certificate
    • Request Signature Method: RSA-SHA1
    • Assertion Decryption Certificate: Assertion not encrypted.
    • SAML Identity Type: Assertion contains user's Salesforce.com username
    • SAML Identity Location: Identity is in an Attribute element
    • Attribute Name: Provide 'SAML2 URI' of your attribute. For our test case we are using Gluu Server's Email attribute. How to check the information of your attribute is available here.
    • NameID Format: Leave this field empty.
    • Identity Provider Login URL: https://test.gluu.org/idp/profile/SAML2/Redirect/SSO
    • Service Provider Initiated Request Binding: HTTP-Redirect

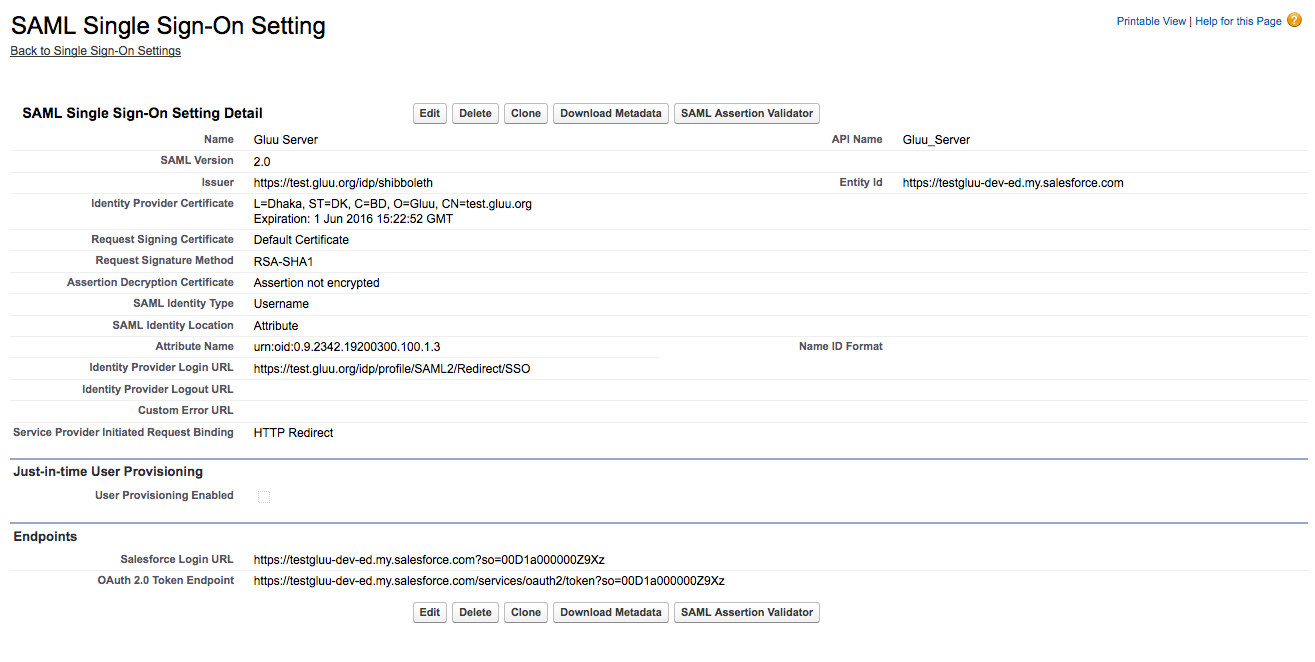

    • Here is how our example setup looks like:


Prepare Gluu Server#

  • How to create SAML trust relationship is available here.
  • Grab Salesforce.com metadata from the Salesforce.com website. There is an option named Download Metadata:
  • Modify Salesforce.com metadata a bit:
    • Remove AuthnRequestsSigned=“true” from metadata.
    • Save metadata
  • Create Trust Relationship:
  • Display Name: Anything, whichever is easier for you to recognize this trust relationship.
  • Description: Anything, whichever is easier for you to recognize this trust relationship
  • Metadata Type: 'File'
  • Upload salesforce's metadata (your modified one)
  • Releases attributes: TransientID and Email
  • 'Add' this trust
  • Configure Specific Relying: It can be done from Gluu Server's GUI (named: oxTrust)
    • Select SAML2SSO
      • includeAttributeStatement: Enabled
      • assertionLifetime: keep the default one
      • assertionProxyCount: keep the default one
      • signResponses: conditional
      • signAssertions: never
      • signRequests: conditional
      • encryptAssertions: never
      • encryptNameIds: never
      • Save it
  • Update the trust relationship

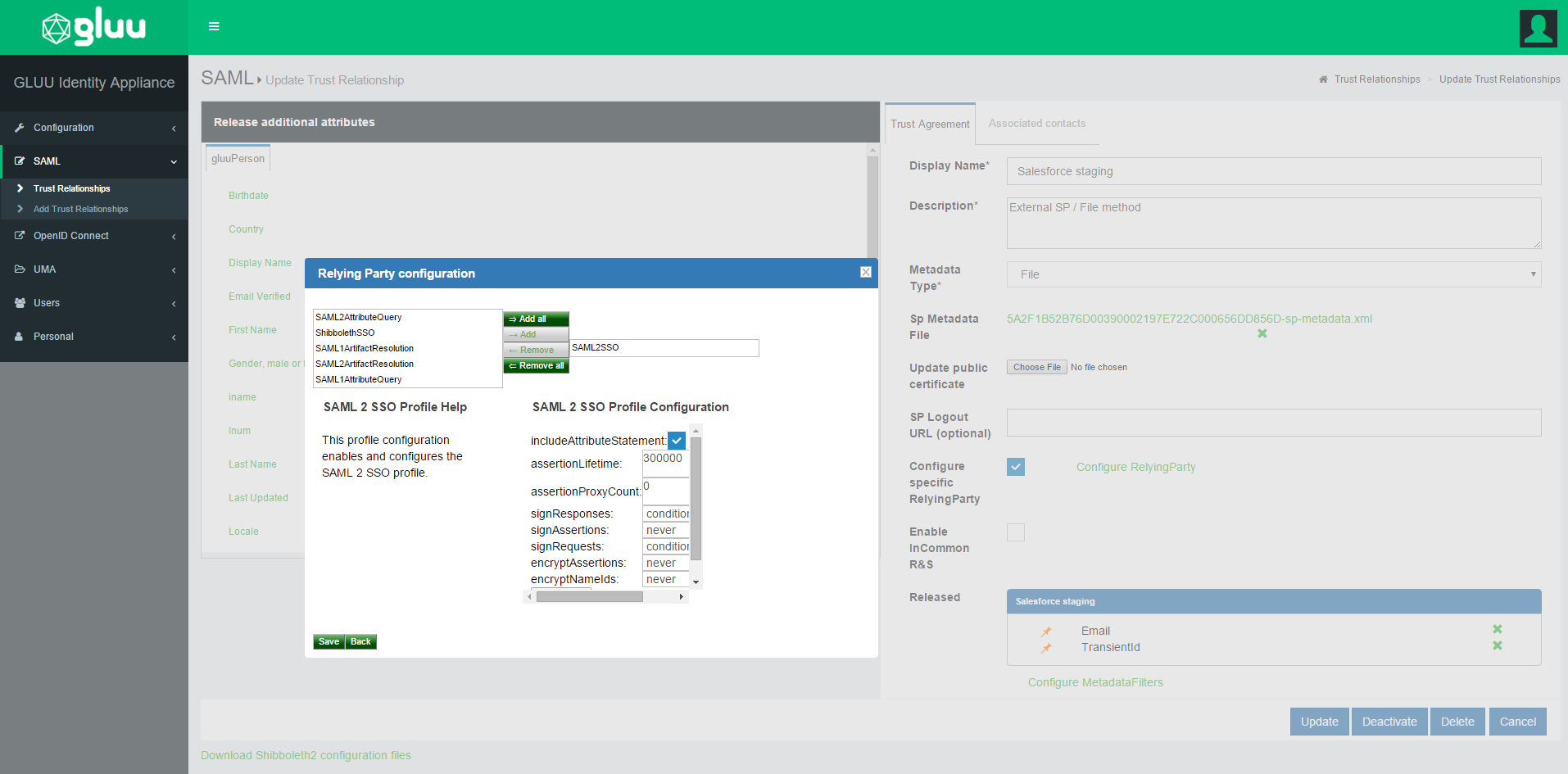

  • Here is how it looks like in our example setup:


Test SSO#

  • Log in to Salesforce.com setup
  • Click Security Controls > Single Sign On Settings
  • Enable Federated Single Sign-On Using SAML
  • Go to Domain Management
  • Configure Authentication Configuration
  • Select Gluu Server
  • Save it

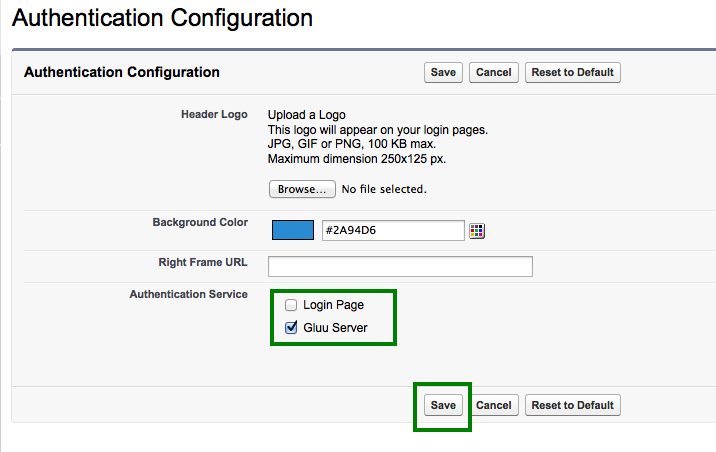

  • Here is how the Authentication Configuration looks like:


!!!Note: This is a SP-initiate SSO. SSO needs to be initiated from Salesforce.com.

Salesforce Demo Video#

You can watch a video demo of this SSO Here .
