SAML Trust Relationship with Hobsons Education Solutions Co#

Attention

The official support end-of-life (EOL) date for Gluu Server 2.4.4 is December 31, 2018. Starting January 1, 2019, no further security updates or bug-fixes will be provided for Gluu Server 2.X. We strongly recommend upgrading to the newest version.

This guide has been prepared to connect the Hobsons Service Provider (SP) with the Gluu Server for SP-initiated SSO. The connection is established through the creation of a Trust Relationship using the Gluu Server UI, oxTrust.

Creating Hobsons Trust Relationship#

  • Log in to your Gluu Server using your admin credentials.

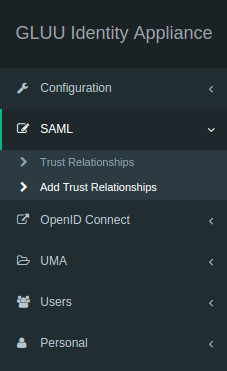

  • Next, click on the SAML tab, and select the option Trust Relationships. Then, click on the Add Relationship button.

Add Relationship

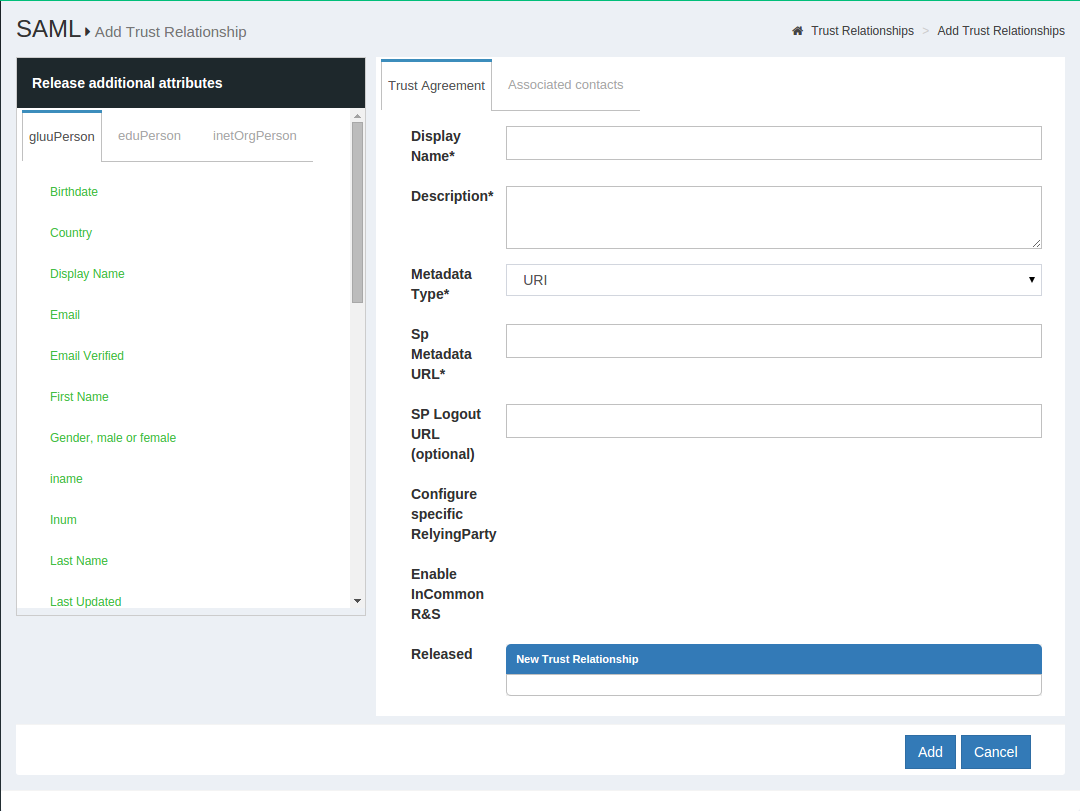

  • The button Add Relationship will open the following page, the trust relationship can be created easily using the following form.

Add empty form

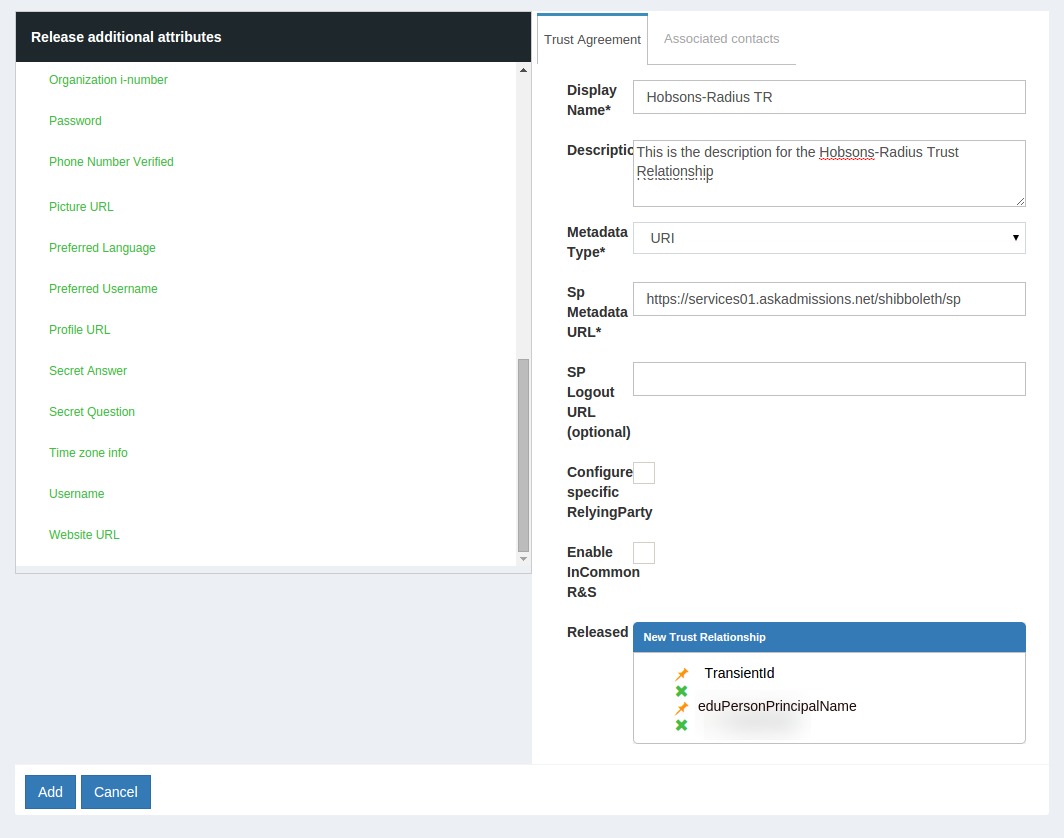

1. __Display Name__: This field contains the display name of the
Trust Relationship. In the example below we use “Test Hobsons-Radius TR”.

2. __Description__: A small description of Hobsons can be input here.

3. __Metadata Type__: Please select the uri from the dropdown menu.

4. __SP Metadata URL__: The metadata uri provided by Hobsons goes here.

5. __SP Logout URL__: This uri is meant to be supplied by the
Hobsons staff. If you did not receiv any logout uri yet, leave it blank.

6. __Released__: The two necessary attributes--`Transientid` and the
`eduPersonPrincipalName`--were selected from the attribute list.

hobsons-tr

7. Finally, click "Add" to finish creating the Trust Relationship.

Configuring Hobsons Trust Relationship#

Please ensure that the new Trust Relationship status is "active". Otherwise click on the Trust Relationship, and activate it before configuring it.

hobsons-tr-active

The configuration screen opens by clicking on the Hobsons Trust Relationship.

  1. Configure Metadata Filters: Do not make any changes.

  2. Configure specific Relying Party: Check this option and a link "Configure Relying Party" will appear.

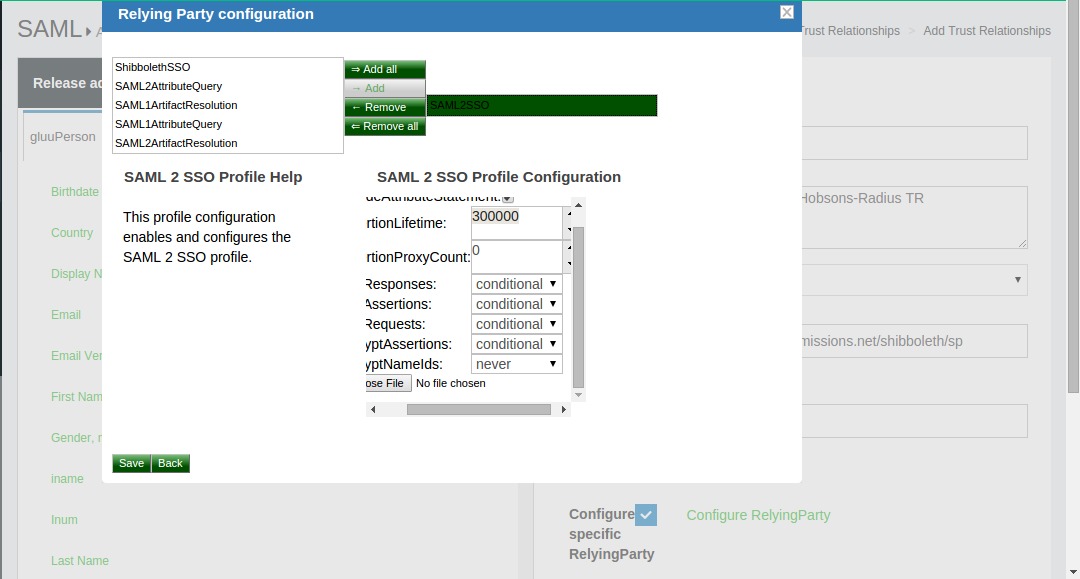

  3. Configure Relying Party: Click on the link, and a new window opens:

    • Select SAML2SSO from the list and click on the "Add" button.

    • Set "signResponses", "signAssertions", "signRequests" and "encryptAssertions" to Conditional from the drop-down menu.

    • Set "encryptNameIds" to Never from the drop-down menu, and click "Save".

hobsons-tr-update

  1. Click "Update" to finish the configuration of the Trust Relationship.
